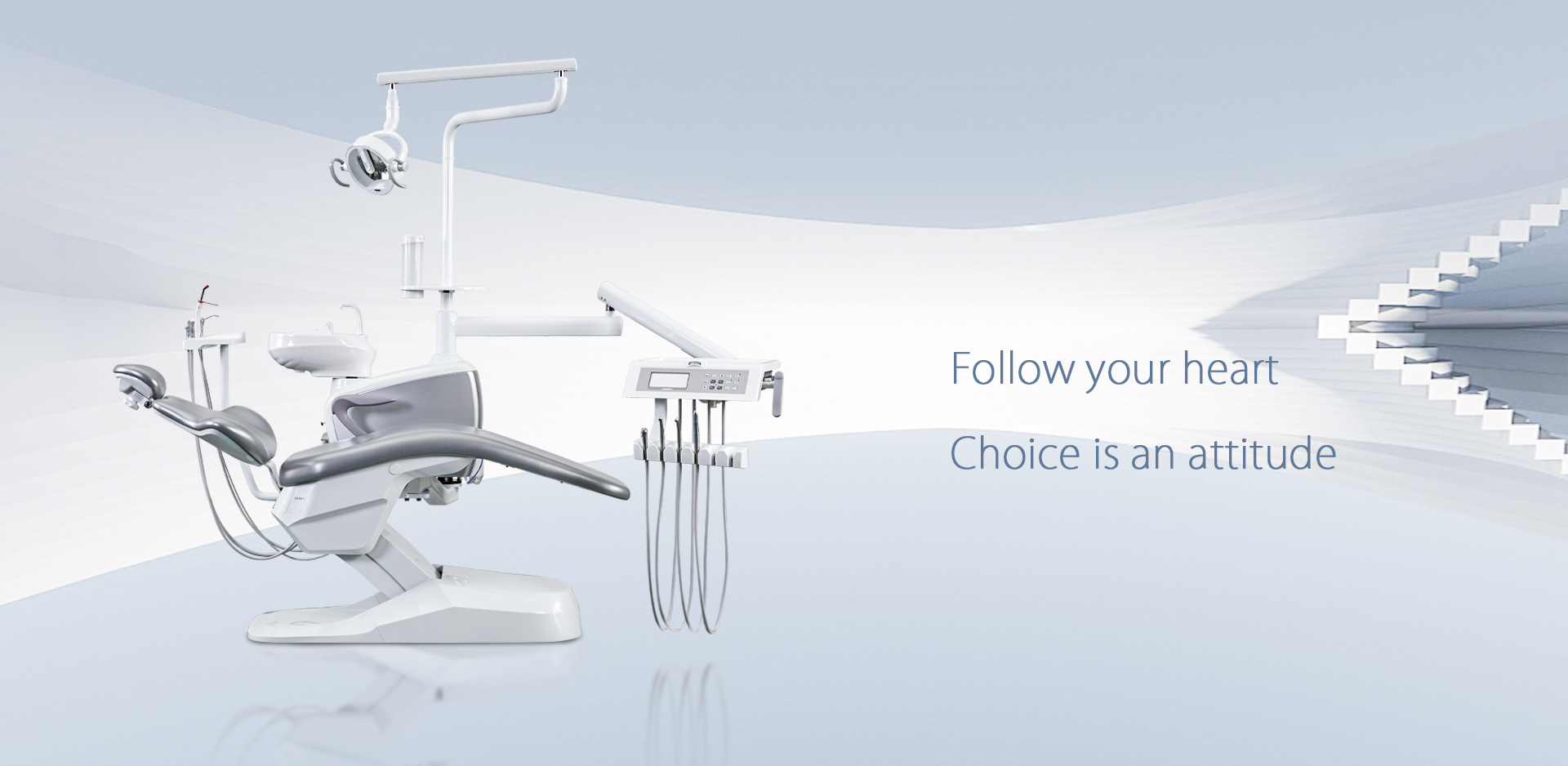

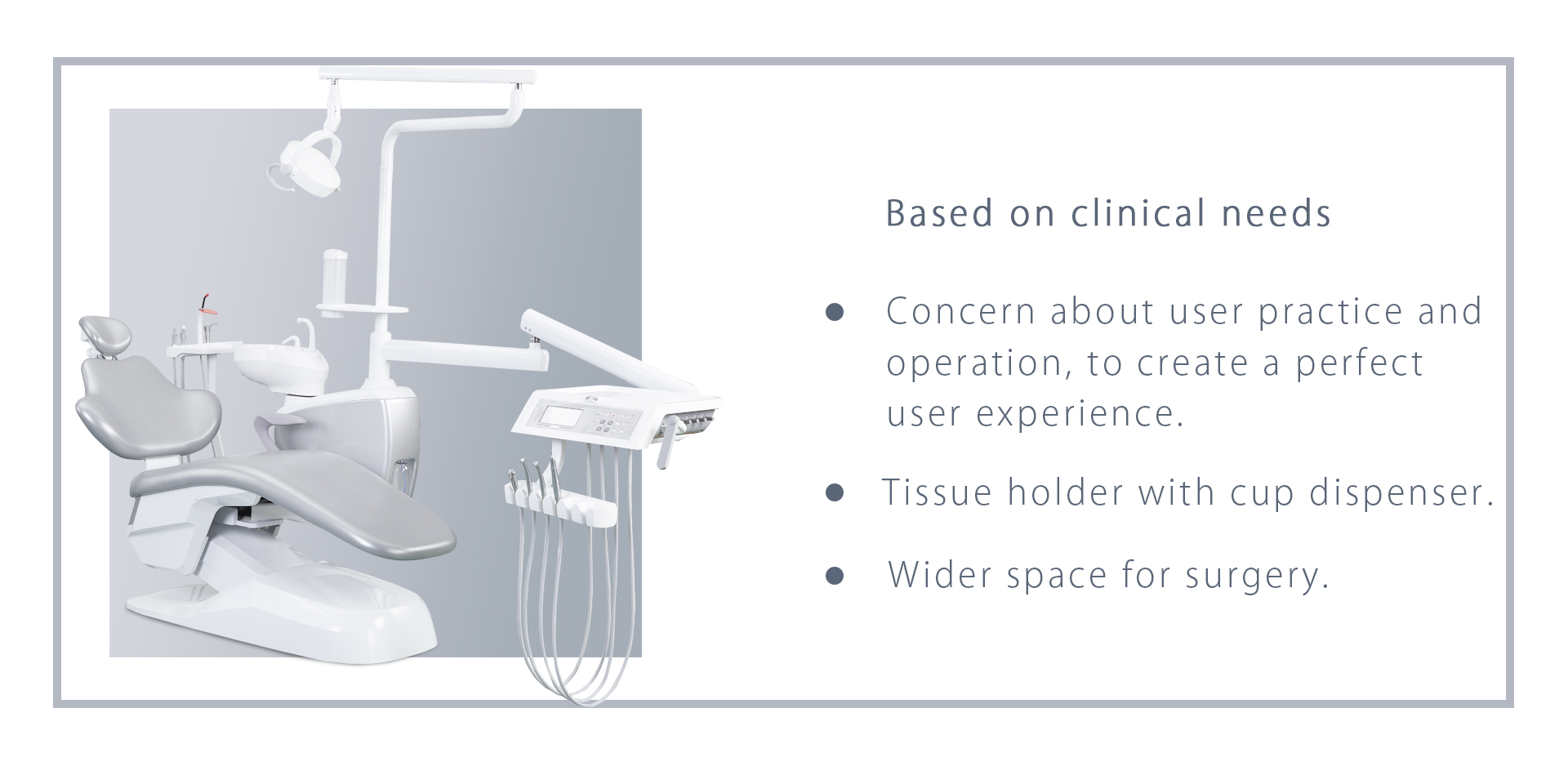

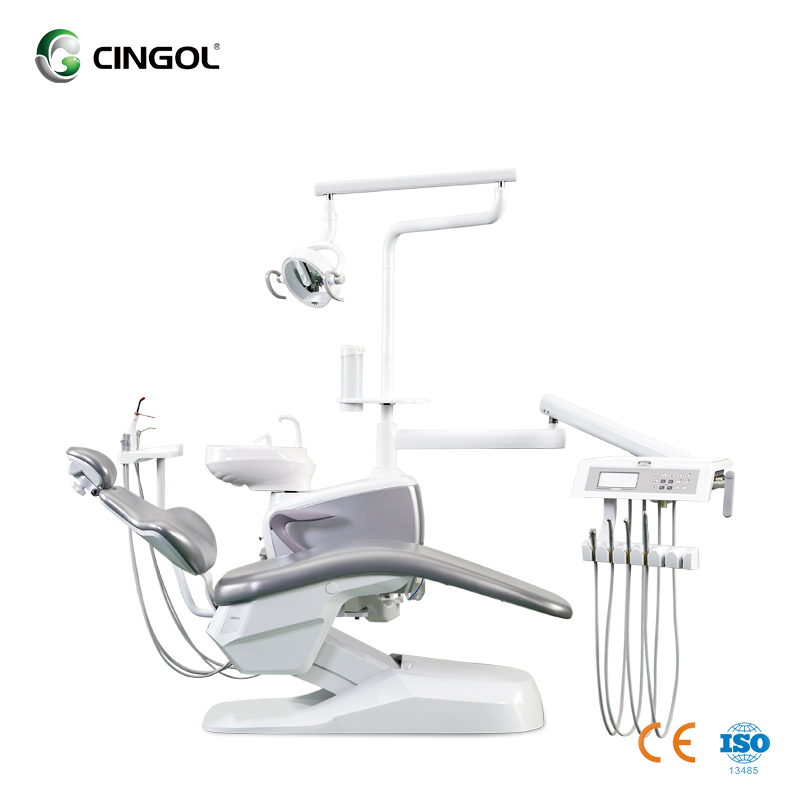

Standard X1 Dental Chair/Dental Unit

DESCRIPTION
Economic,Efficiency,Reliable Dental Unit.

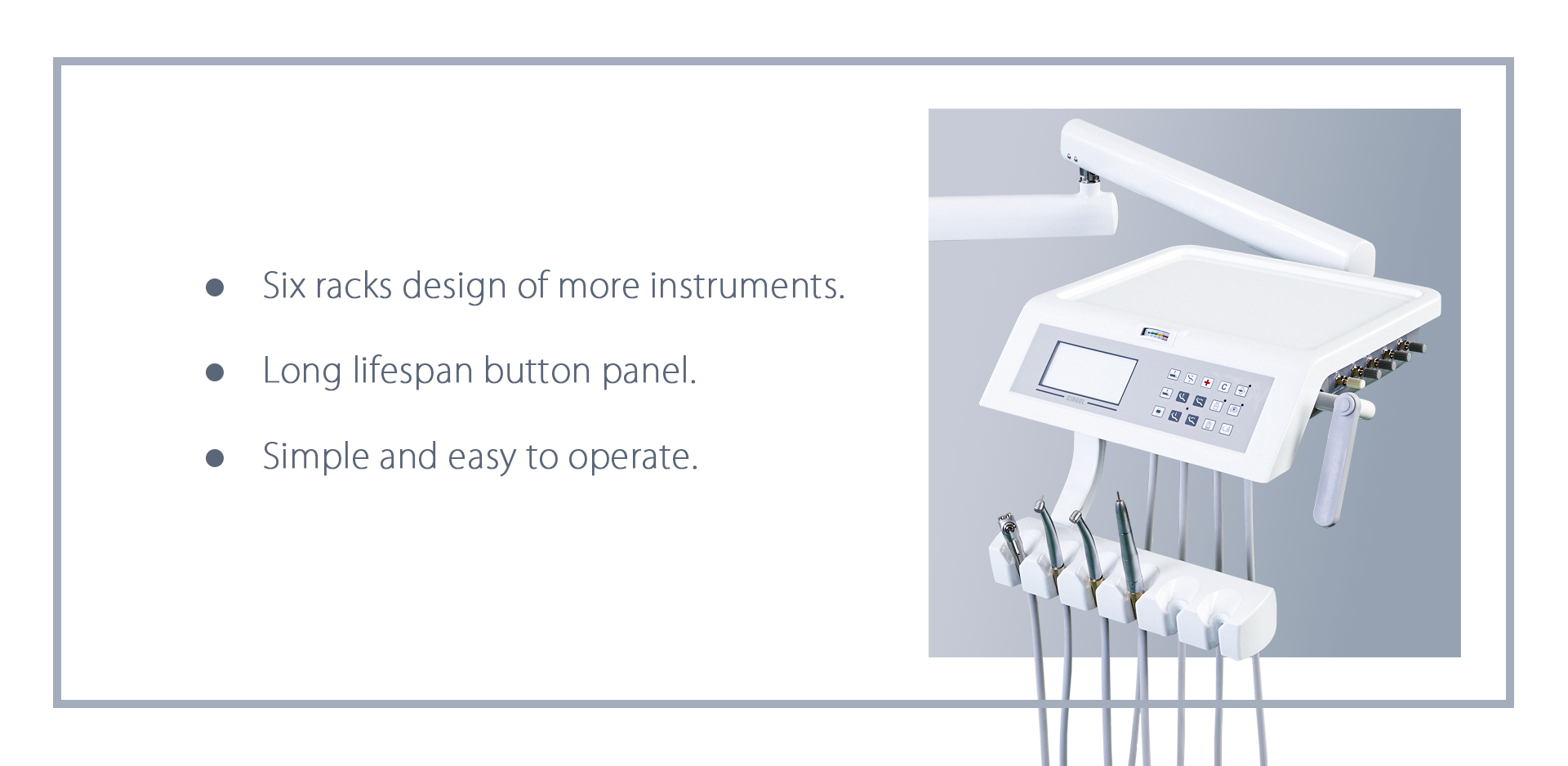

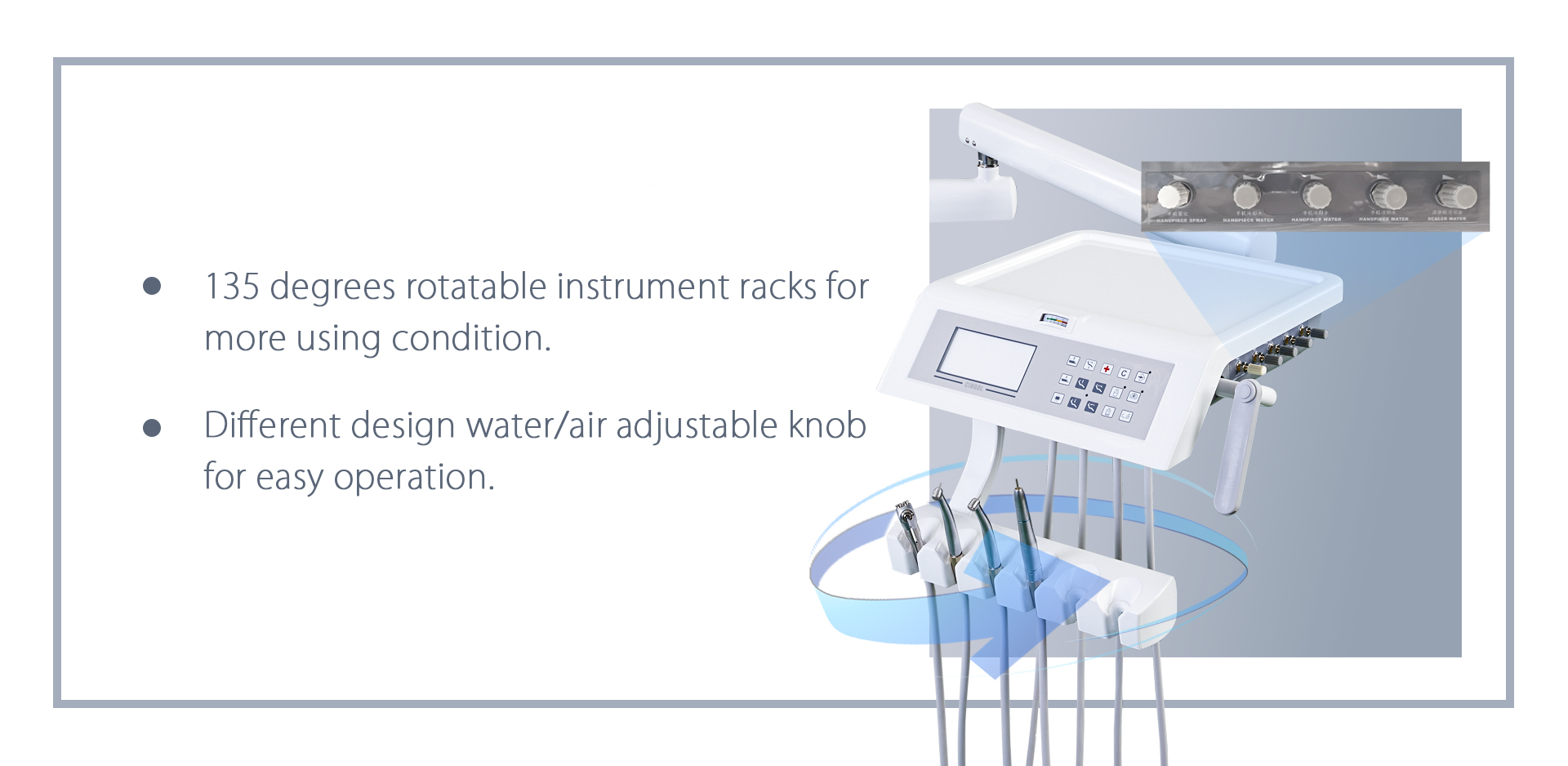

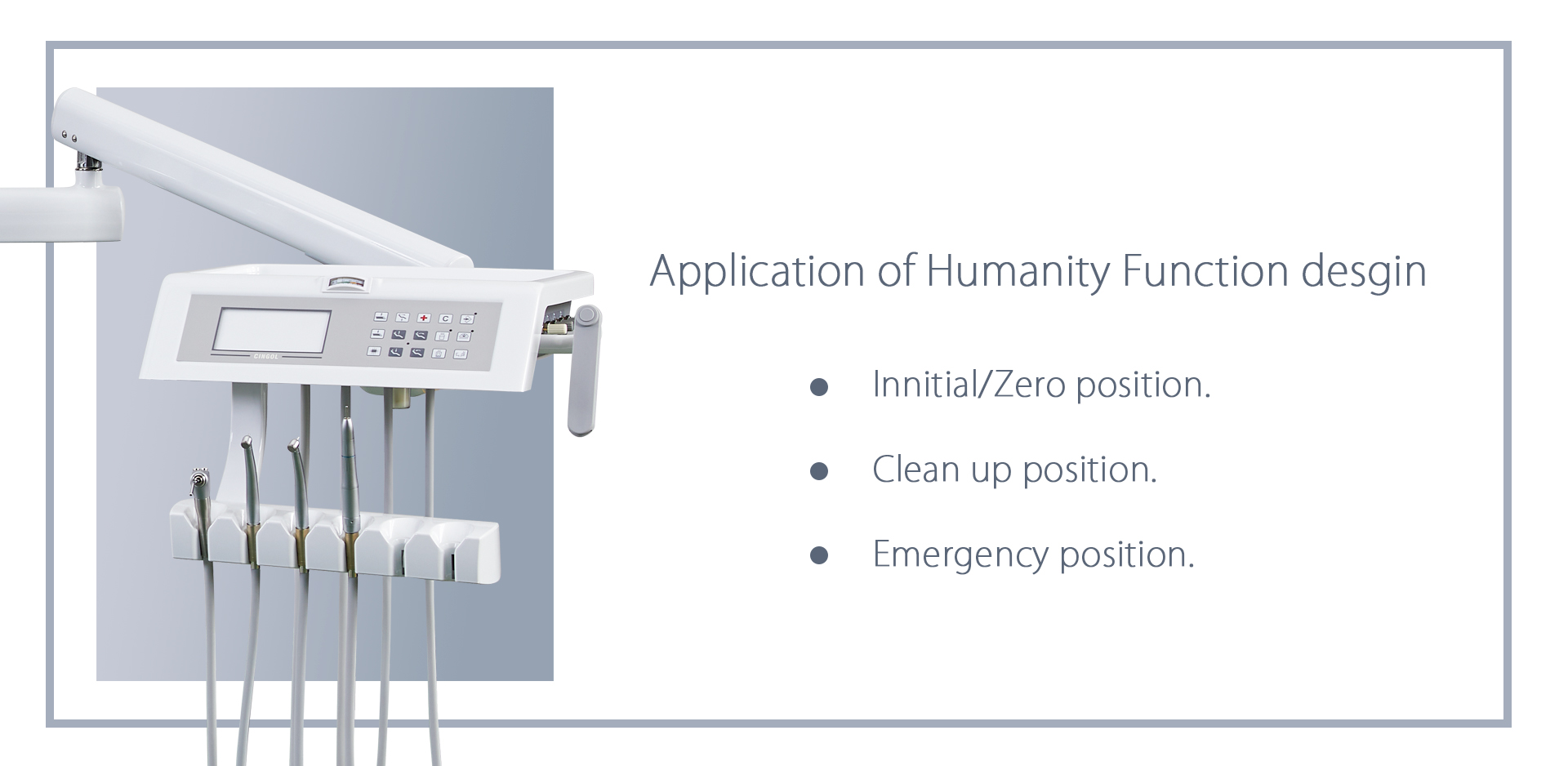

Button panel instrument tray

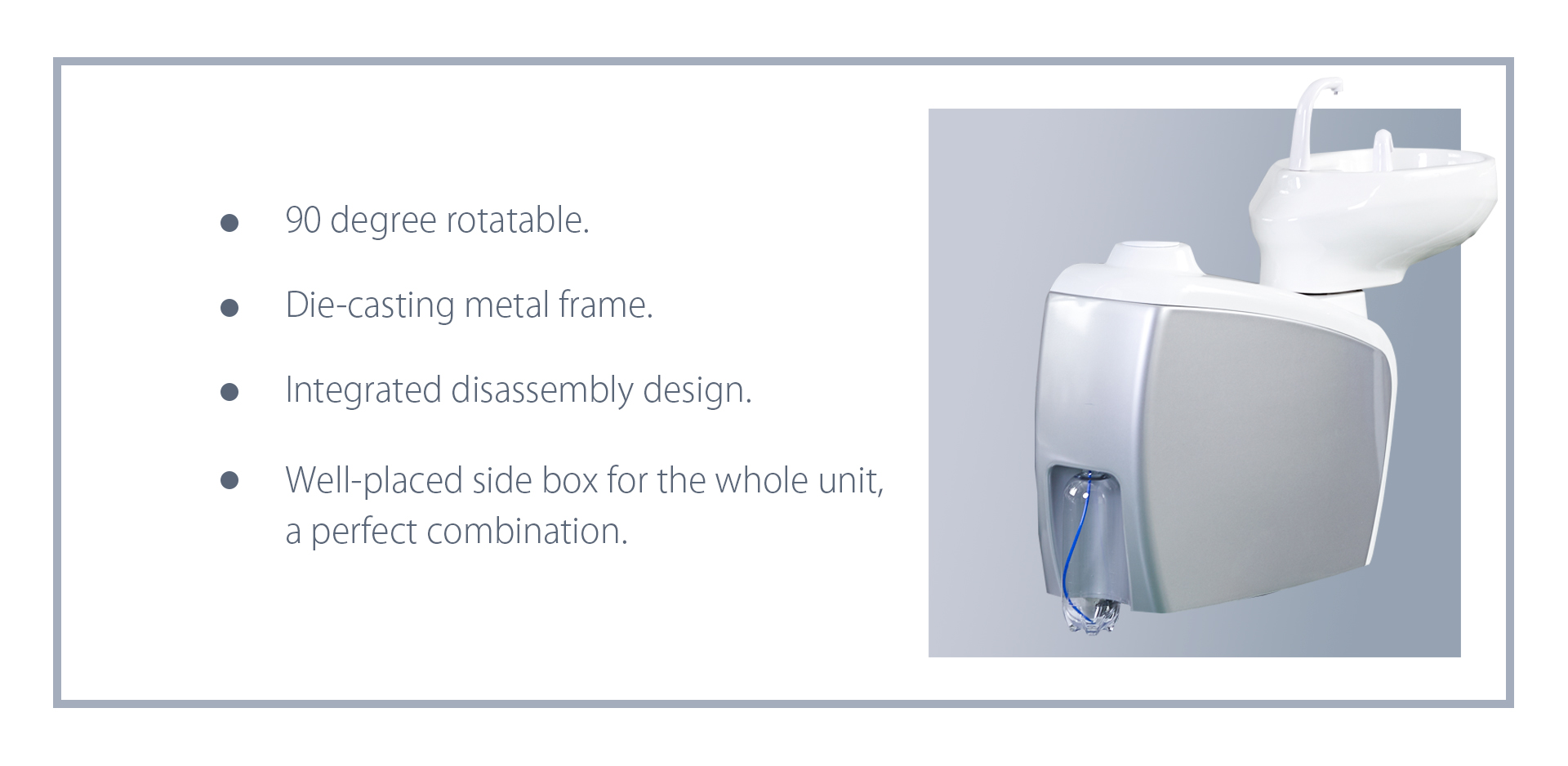

Rotatable dental unit cabinet box facilitates 4-hand operation and easy for maintenance

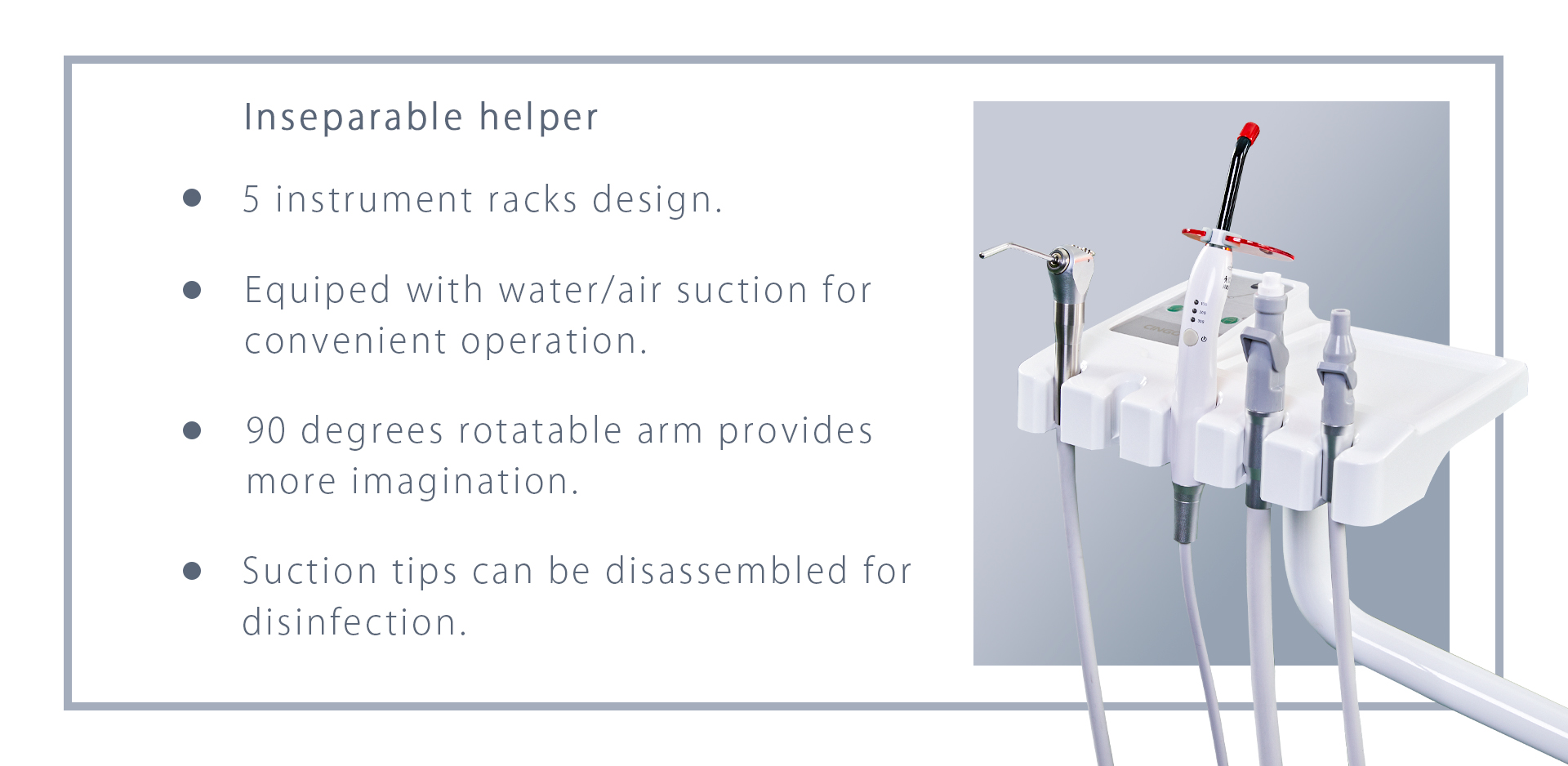

Multi-functional Assistant Tray allows assistant to control chair position, cuspidor flushing ,water heating and cup filling.

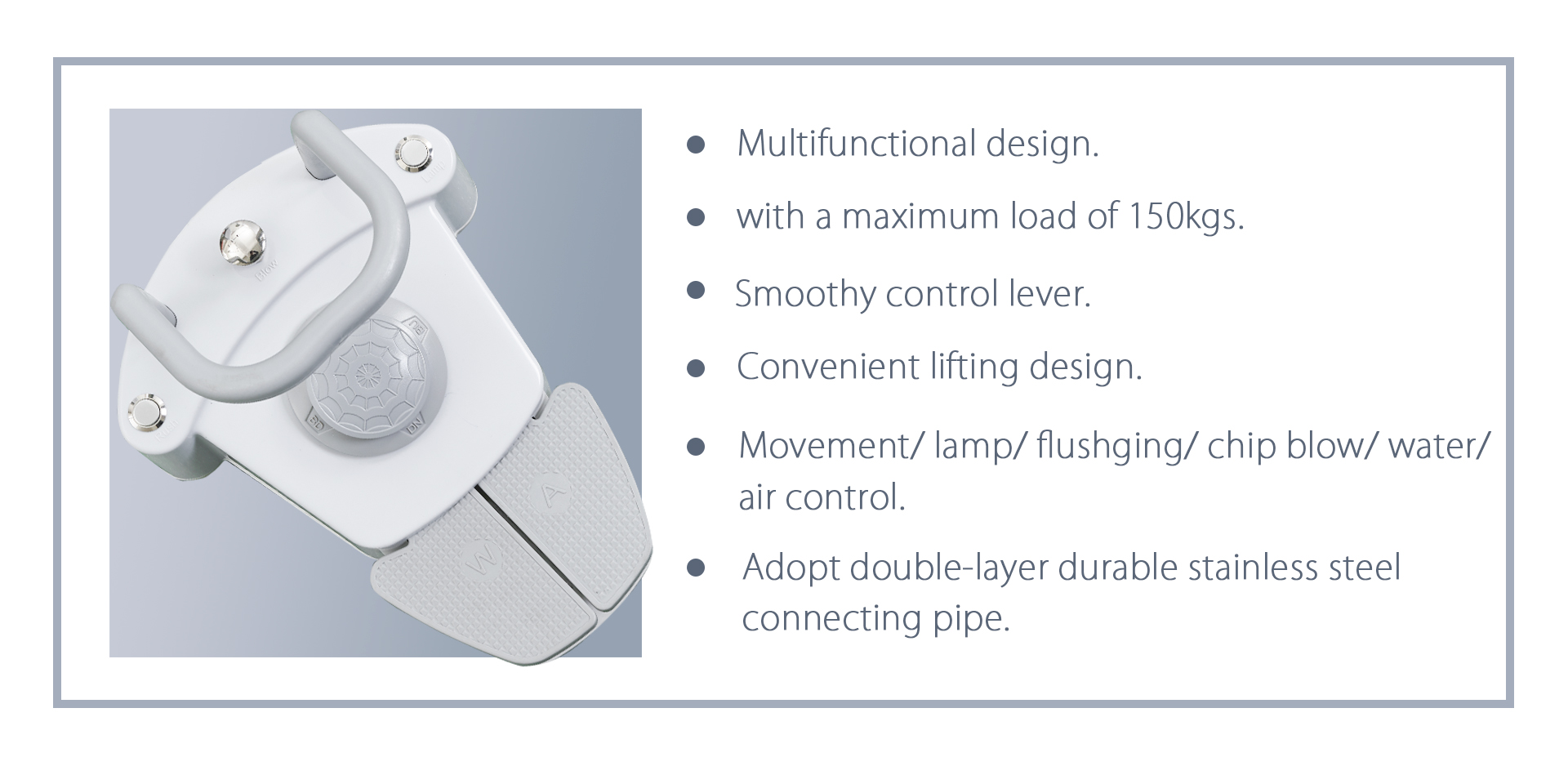

Multi-Functional Foot Pedal is easy to use and efficient for dentist.

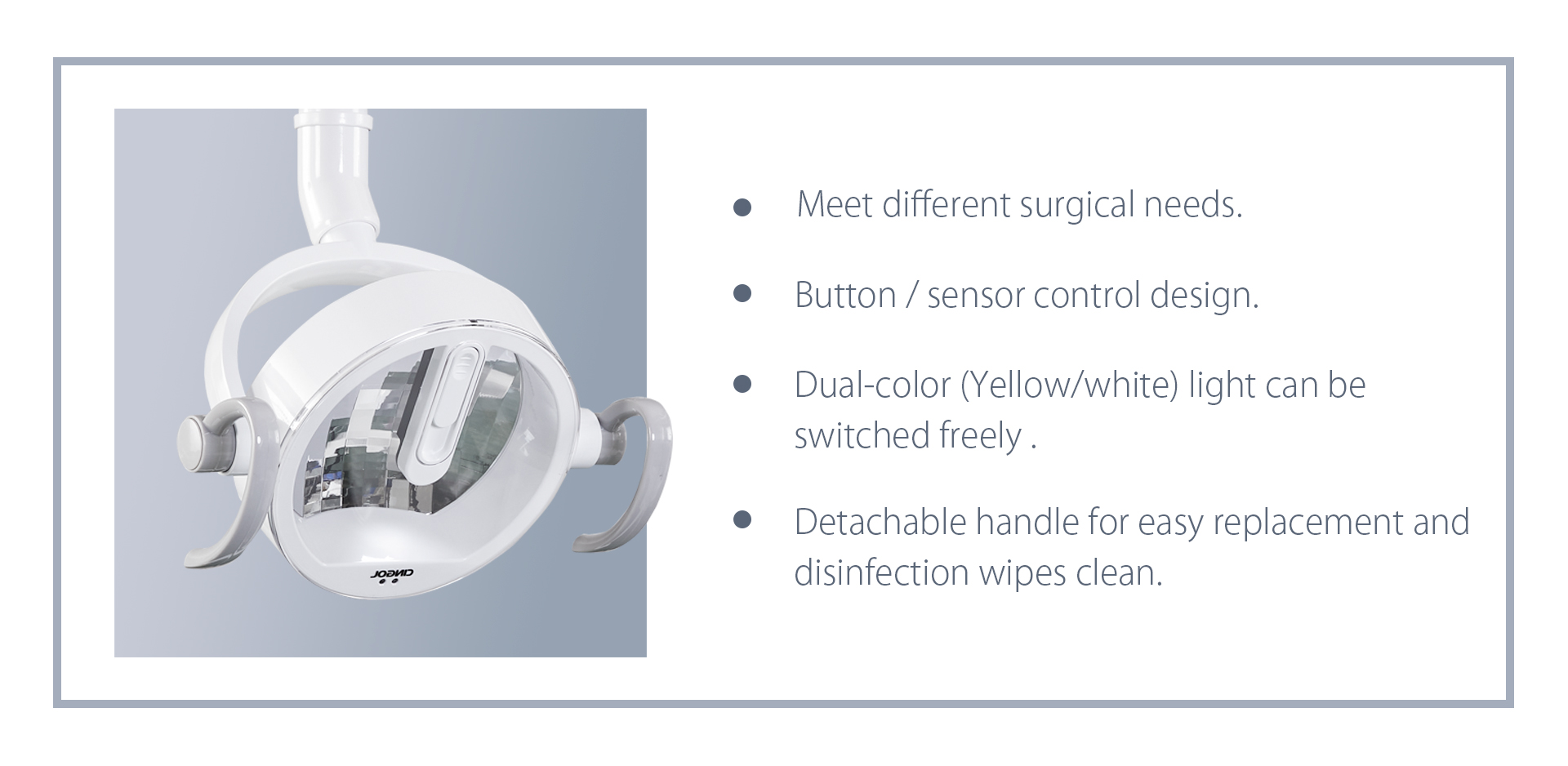

Dimmable LED Operation Light is shadowless focus,flexible and easy to use.

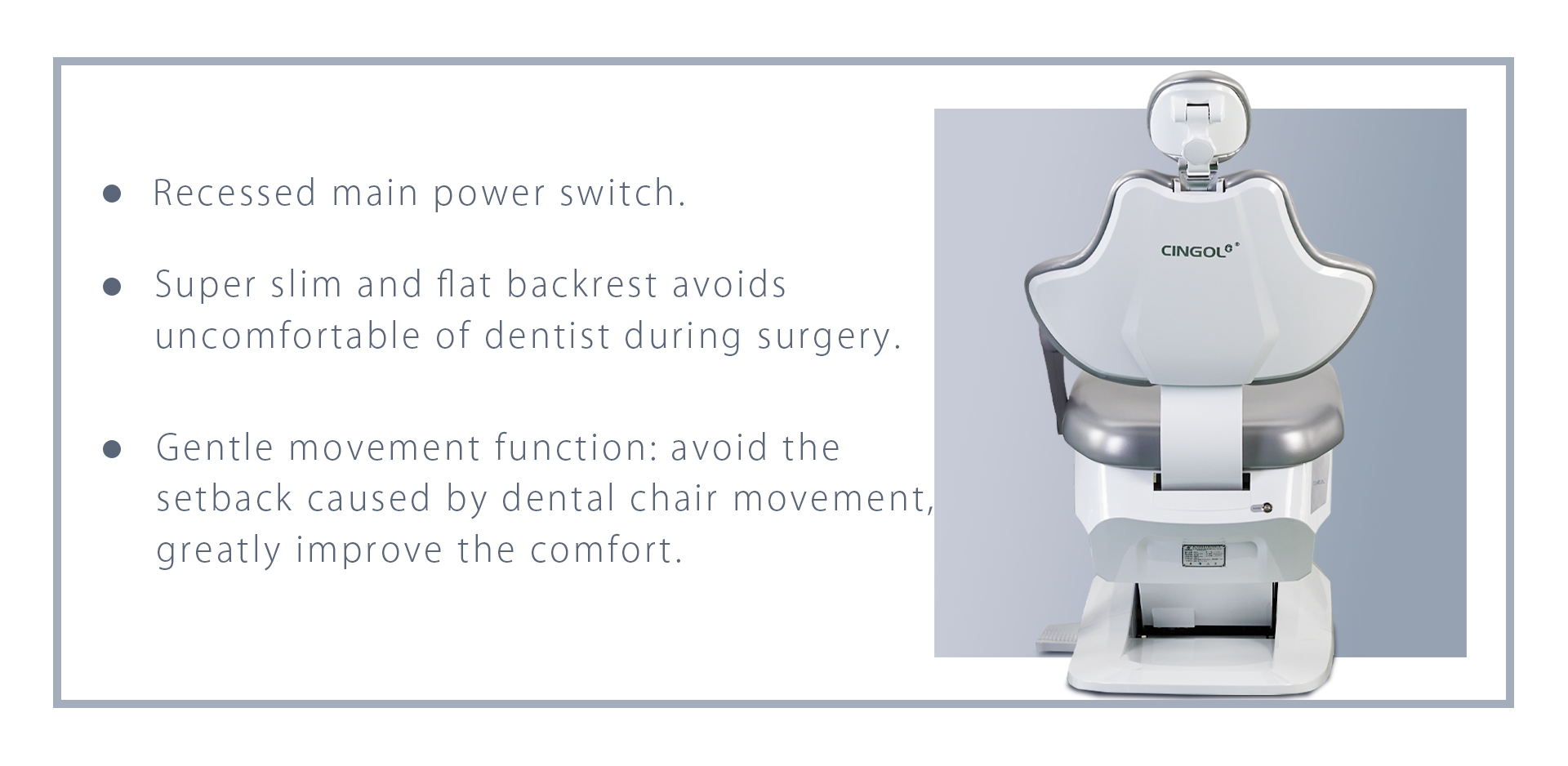

3-In-1 Main Switch & Emergency Stop allows to turn on/off the power&water&air system with on switch,simple and efficient. Moreover,it is an emergency stop switch.
Ergonomic Doctor Stool with 6 ways adjustment allow doctor to choose the suitable position.

Product Details

Parameter

Options

Inquiry

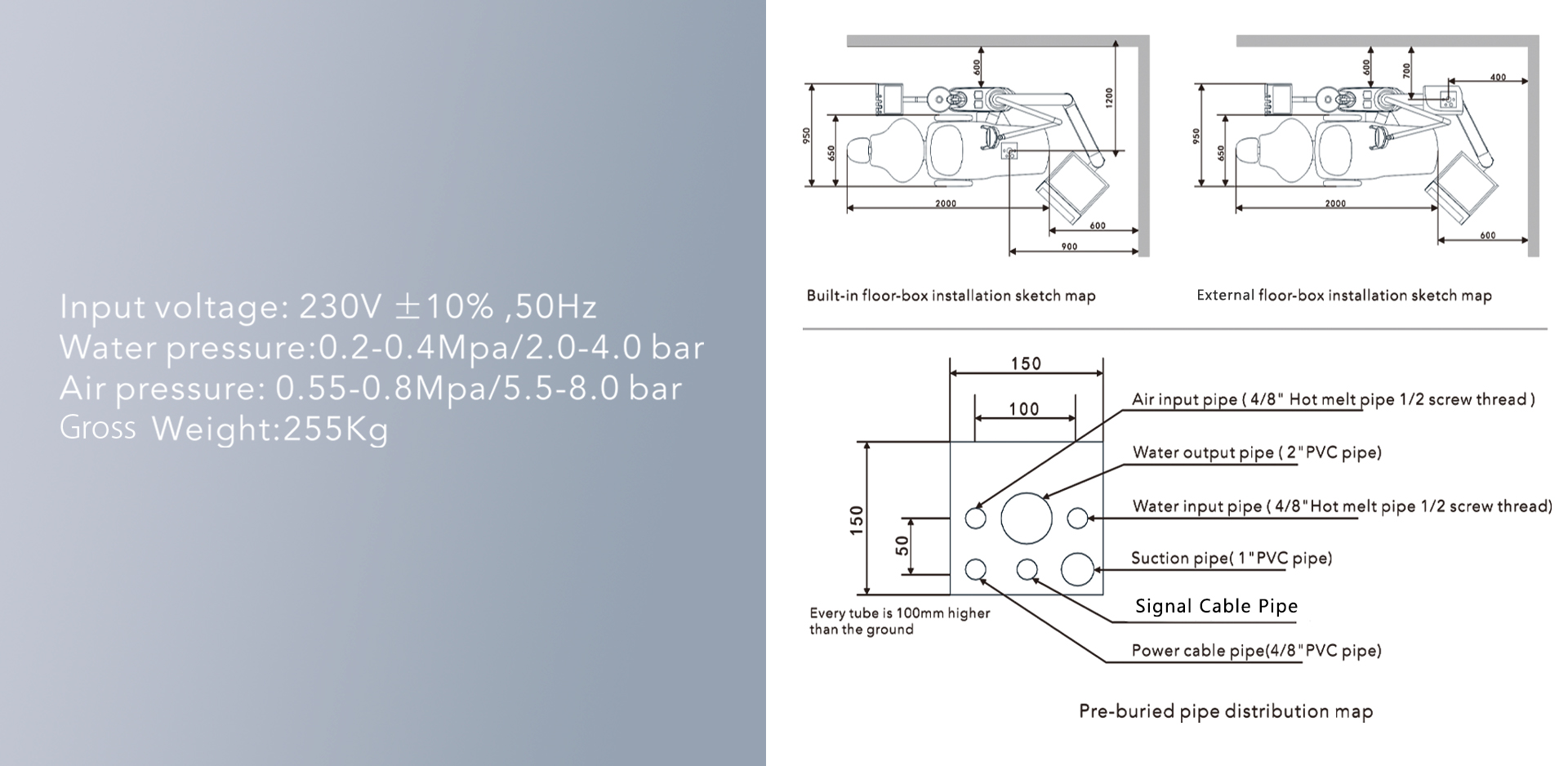

TECHNICAL PARAMETERS:

Dental Unit
Input Voltage : AC220V-230V
Water Pressure : 0.20-0.40Mpa/2.0-4.0bar
Air Pressure :0.55-0.80Mpa/5.5-8.0bar
Output : ≥55L/min (water vacuum)
≥55L/min (air vacuum)
Weight : 235kg

LED Lamp
Input voltage: AC12V-24V, 50/60Hz
Power: 5W
Max Lux: ≥25000Lux
Min Lux: ≤3000Lux
Color Temp.: 5000-5300K
Dimmable: PIR sensor by 2 grades light intensity adjustment
Weight: 1000g

CONFIGURATION:

High speed 4 holes handpiece(turbine) tubing	2 pcs
Low speed 4 holes handpiece(turbine) tubing	1 pc
Water tank (air pressurized)	1 pc
Syringe	2 pcs
Strong suction and saliva ejector(weak suction)	1 set
LED operating light	1 pc
24V Gear motor	2 pcs(2 up/down motor)
Cuspidor flush & Cup filler	1 set
Multifunctional Pedal	1 pc
Built in Film viewer 24V	1 pc
Dentist stool	1 pc

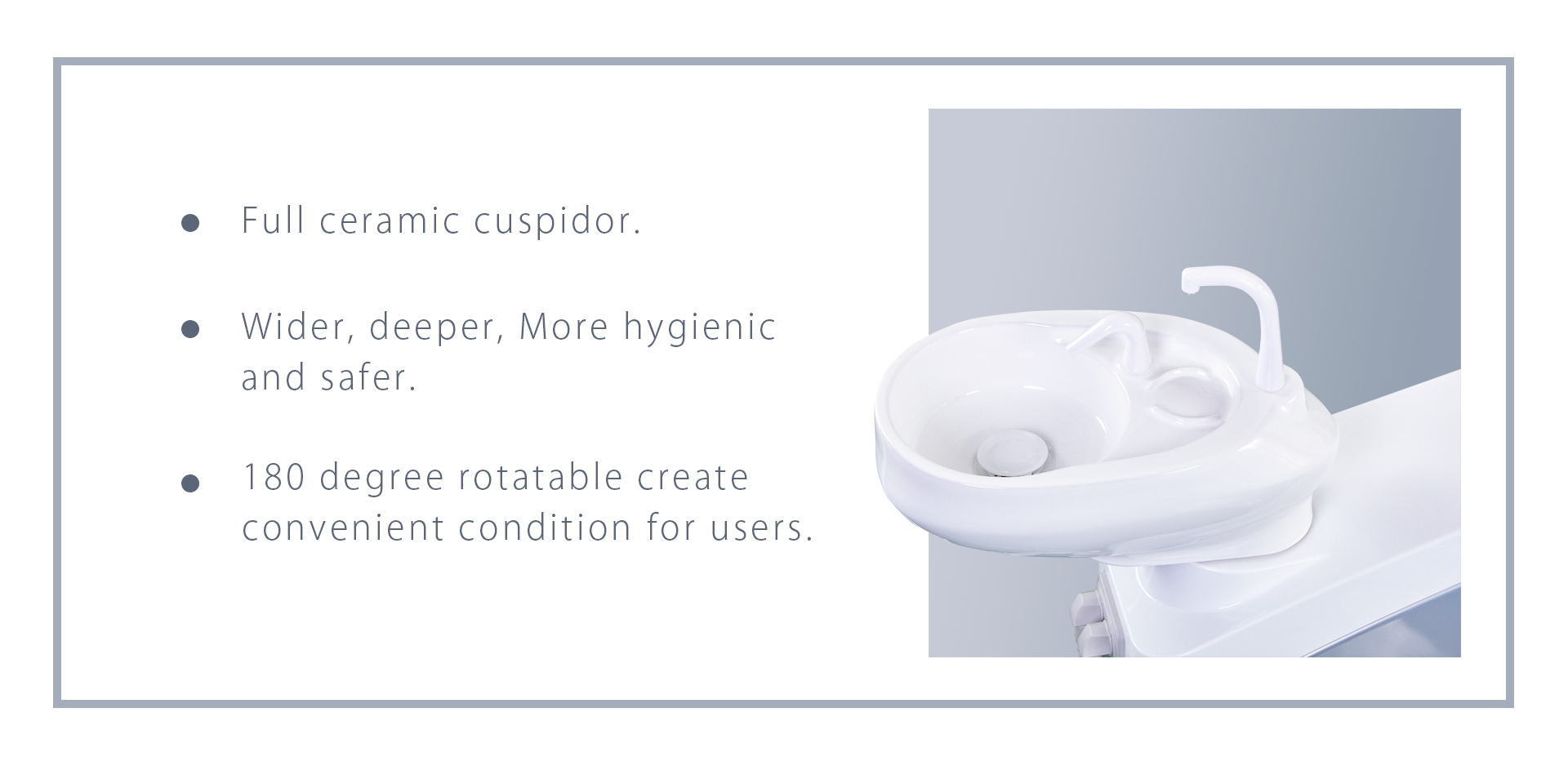

Cuspidor	1 pc

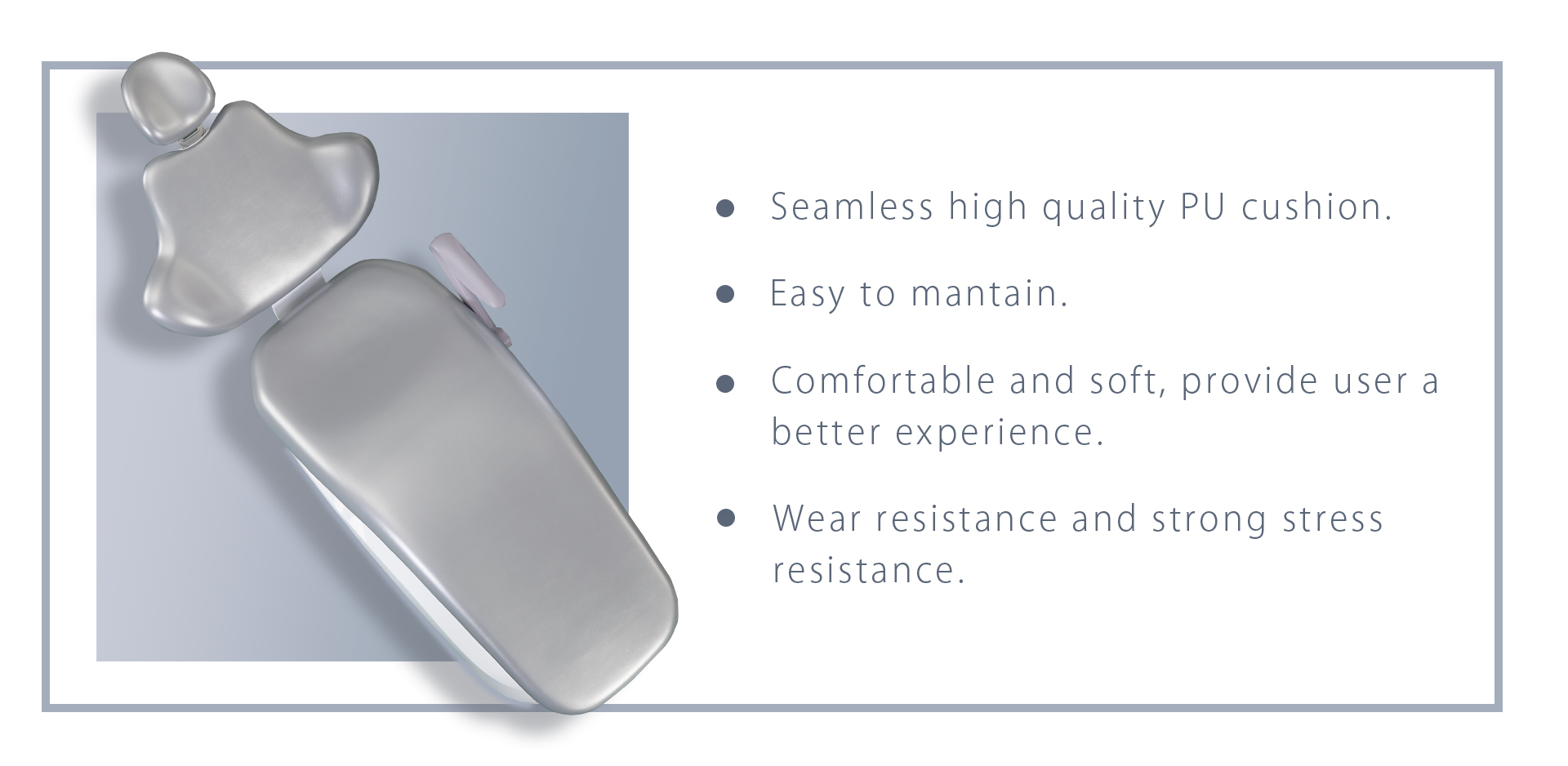

PU upholstery	1 set

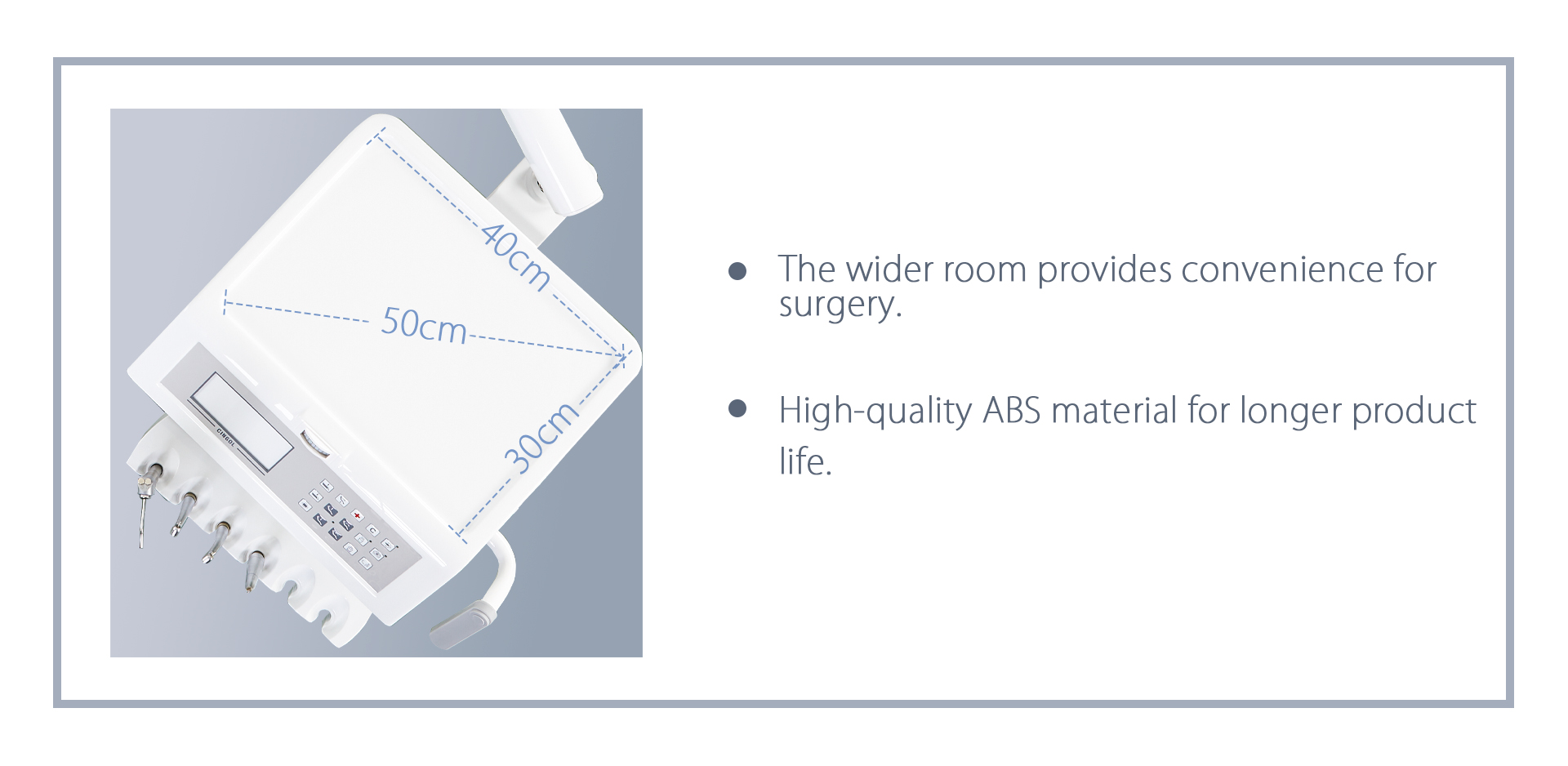

Main tray	1 pc
Assistant tray	1 pc

The manufacture reserve the right to alter and improve the specification without notice.

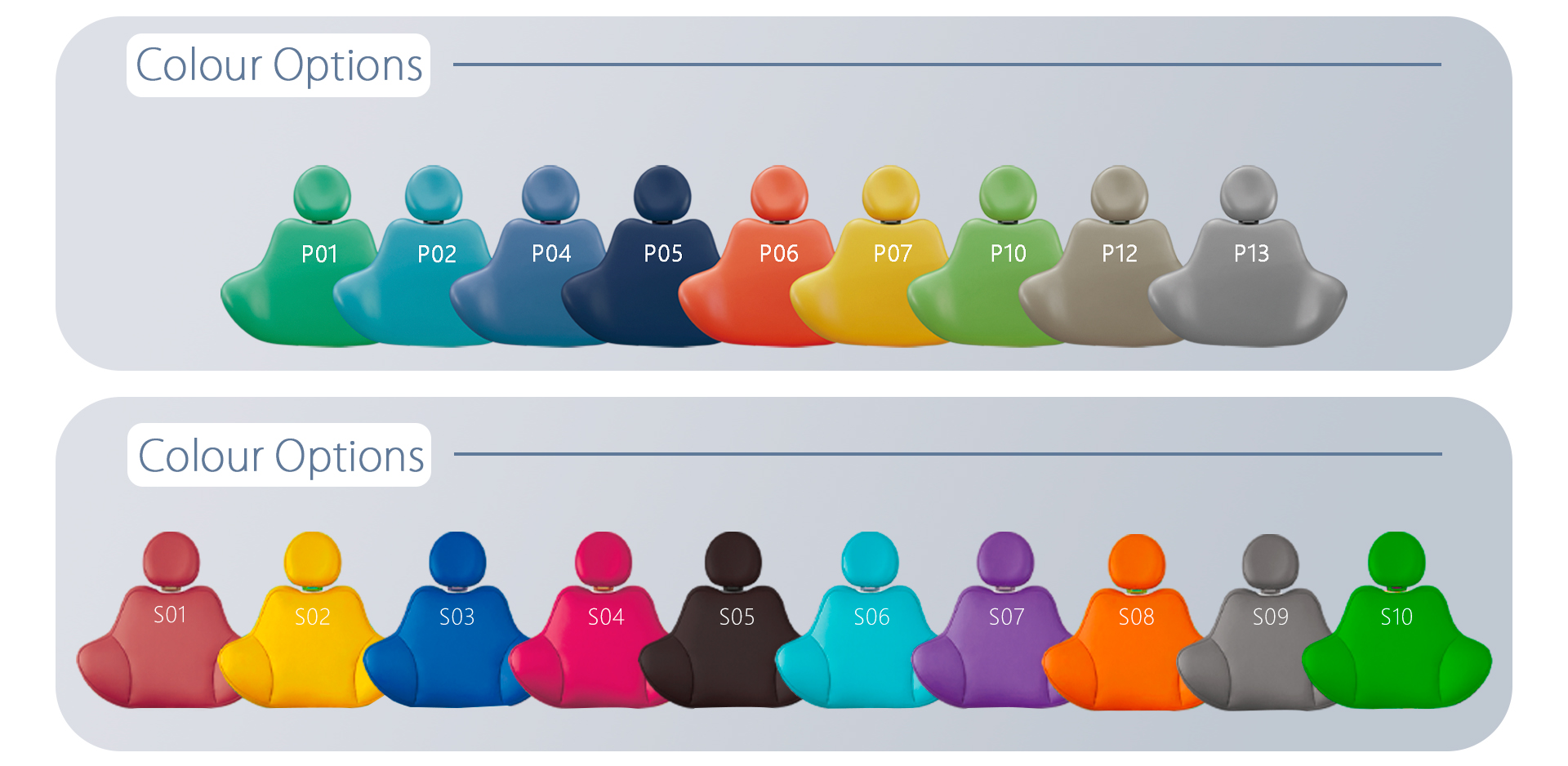

Colors available:

Standard :PU Leather

OPTIONAL: Micro Fibre Leather
