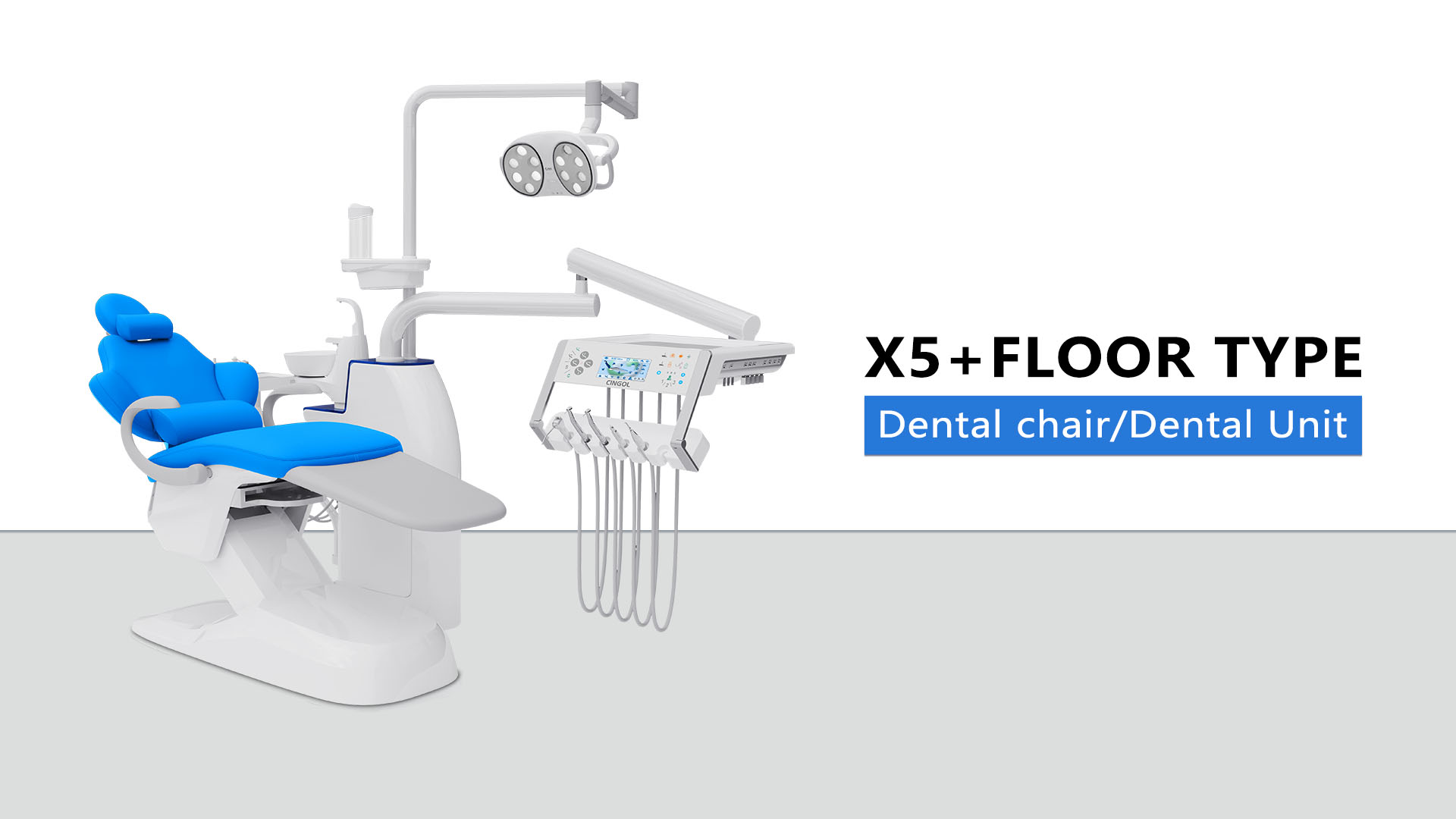

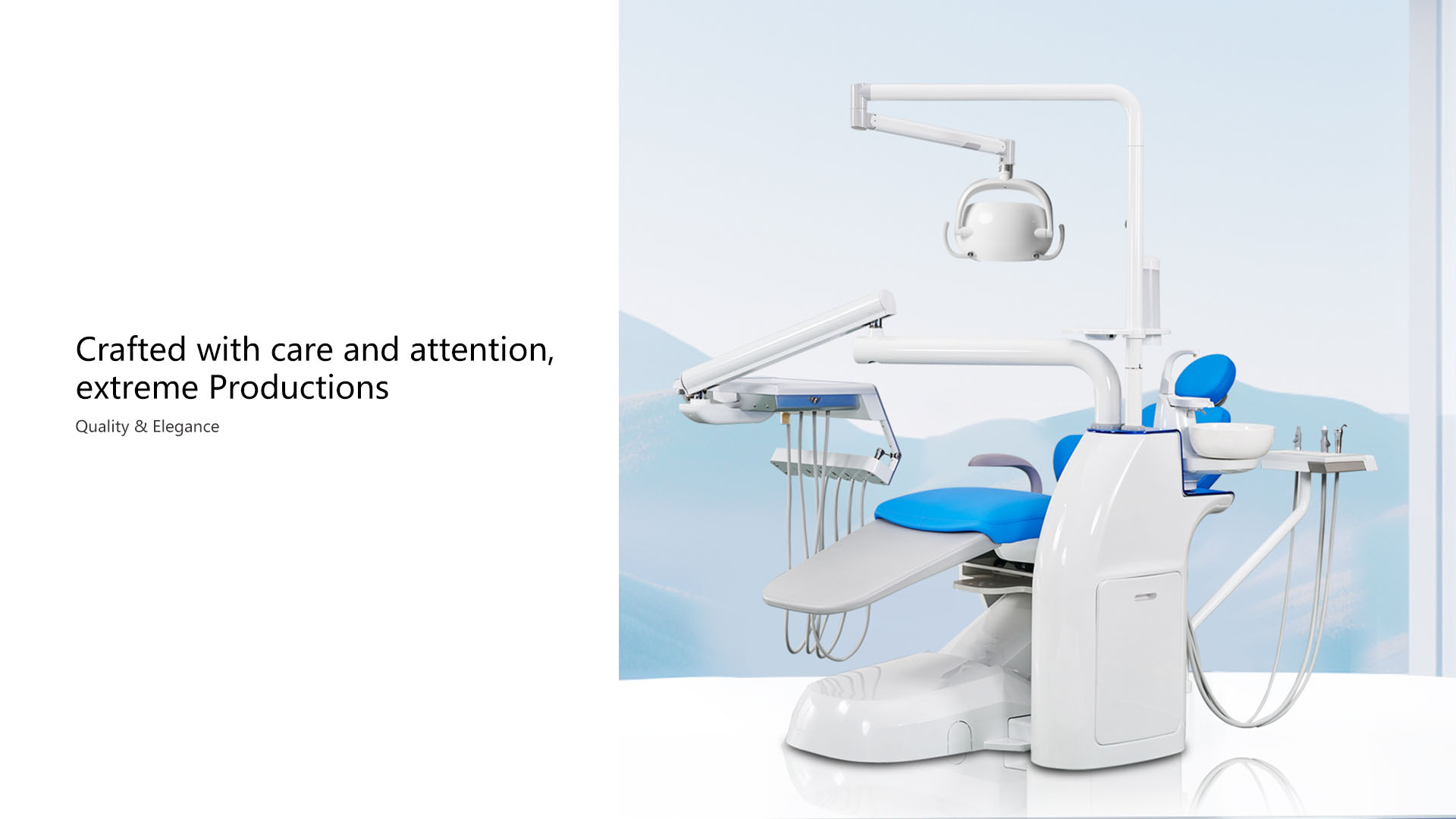

X5+ Floor Type Dental chair/Dental Unit
Elegant design floor stand main unit
Cuspidor position interlock system
When cuspidor angle turns toward patient,
all function keys will be disabled, prevent accident while gargle
Make everything simple.Ease to use,dentist convenient,Patient comfortable.
-- Clean up chair position
To clean up after treatment, just simply press "C" .
Automatically, the chair will be raised to highest position, cuspidor flushing,LED operation light off.
Time saving and work efficiency.
-- Digital display screen
Stopwatch, pneumatic and water temperature are digital display.
-- Water heating system
Water temperature adjustable for all tubes.
Multi-protection,we care the most
-- Emergency Position
Safety is most concerned by our company. when emergency during the surgery,press“Emergency Position” to set the dental unit to the first aid position in shortest time.
The backrest will be set to an angle of -5°,the seat will be set to the highest position.
Emergency position highly facilitates doctors to save patient in emergency case.
-- Interlock machine chair
When handpiece,scaler or other dental instrument is working, chair position will be locked automatically, preventing patient from injuring by hight speed instrument.

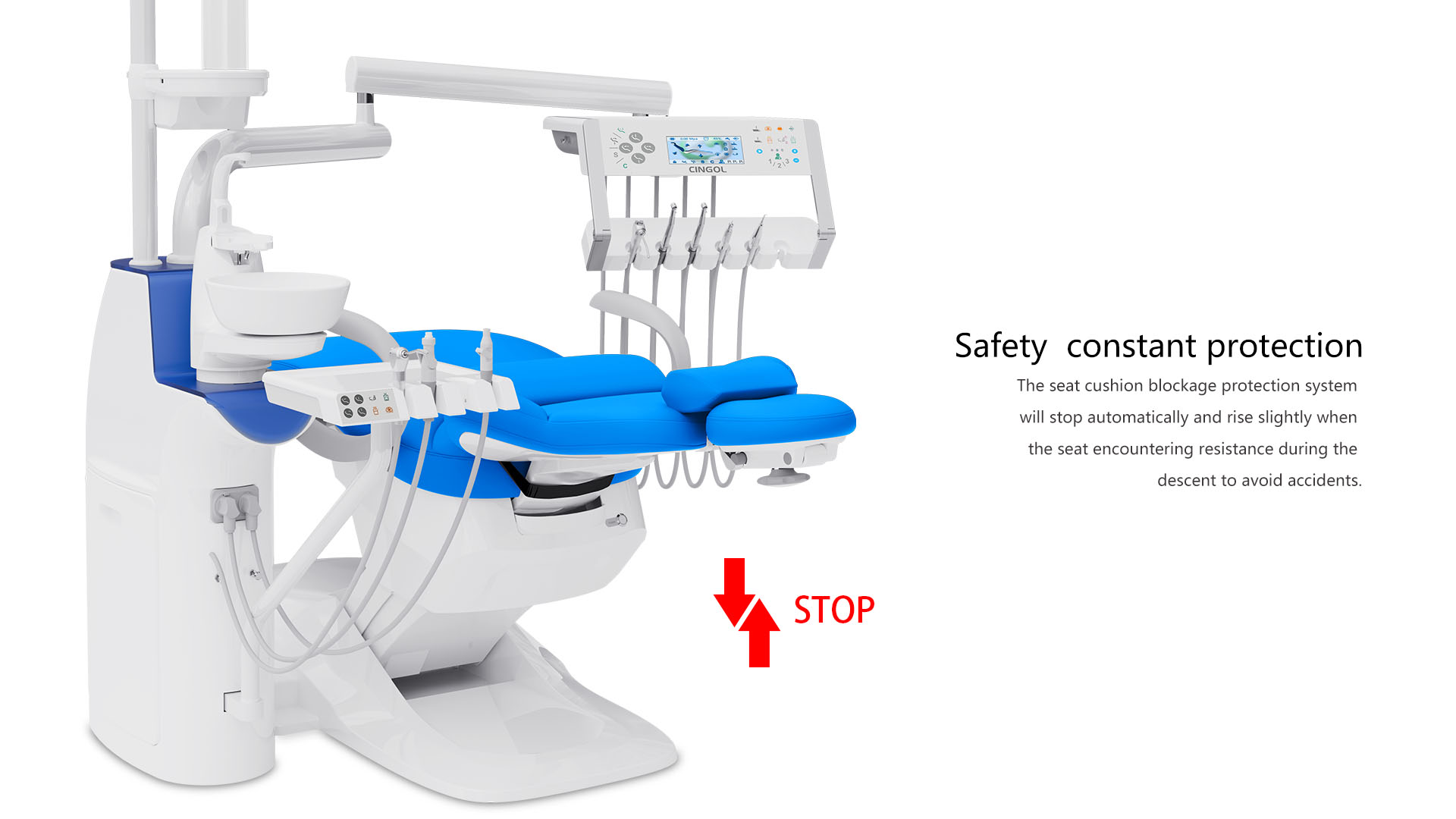

-- Blockage Protection
Backrest will be stopped when blocked during movement, to protect dentist.
Easy to unpick and clean.
-- Detachable Suction Filter
Easy for replacement and cleaning,keeping pipes unobstructed and clean.

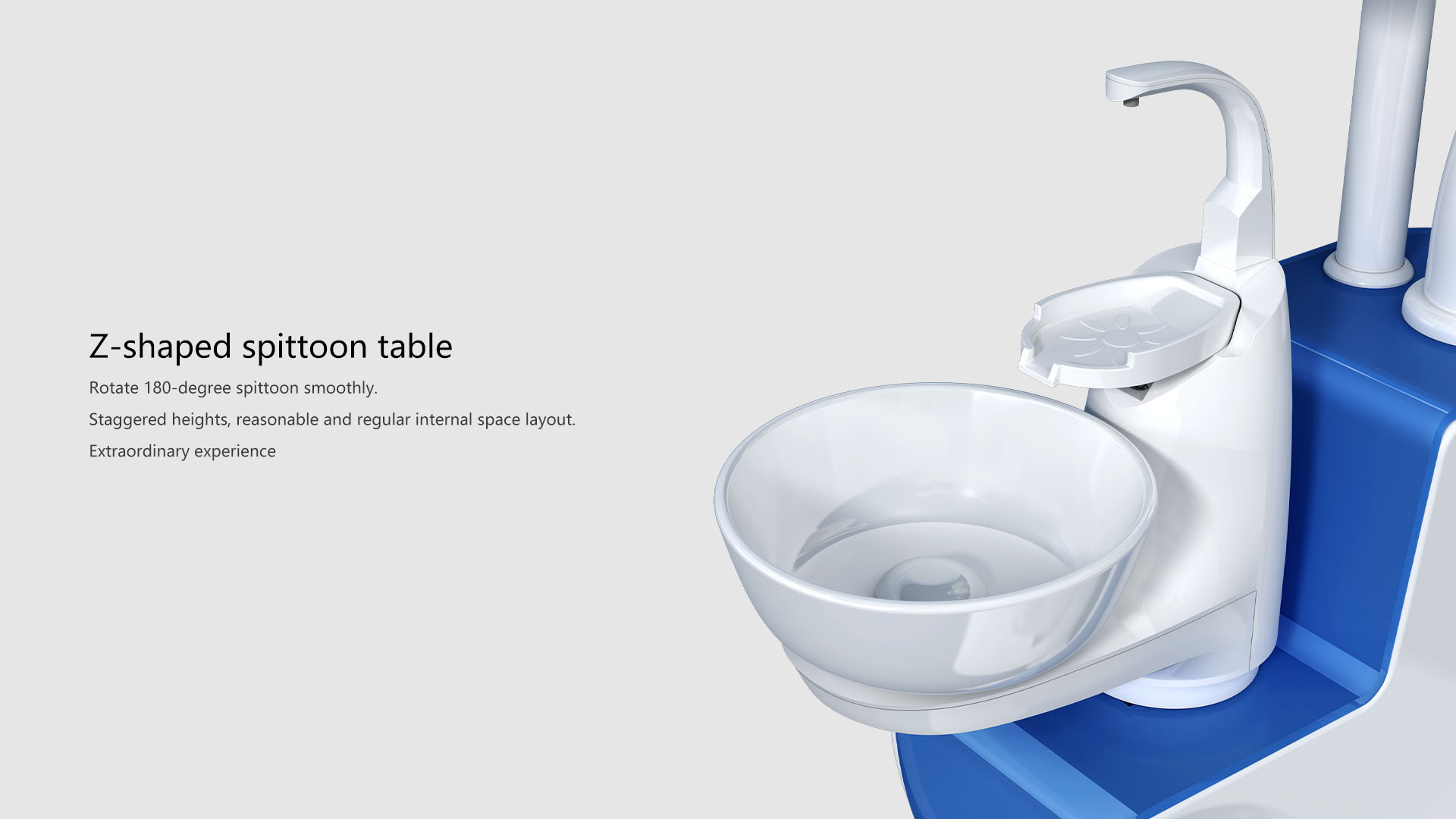

-- 180° Rotatable Ceramic cuspidor
Meets the demand of different spiting angle.

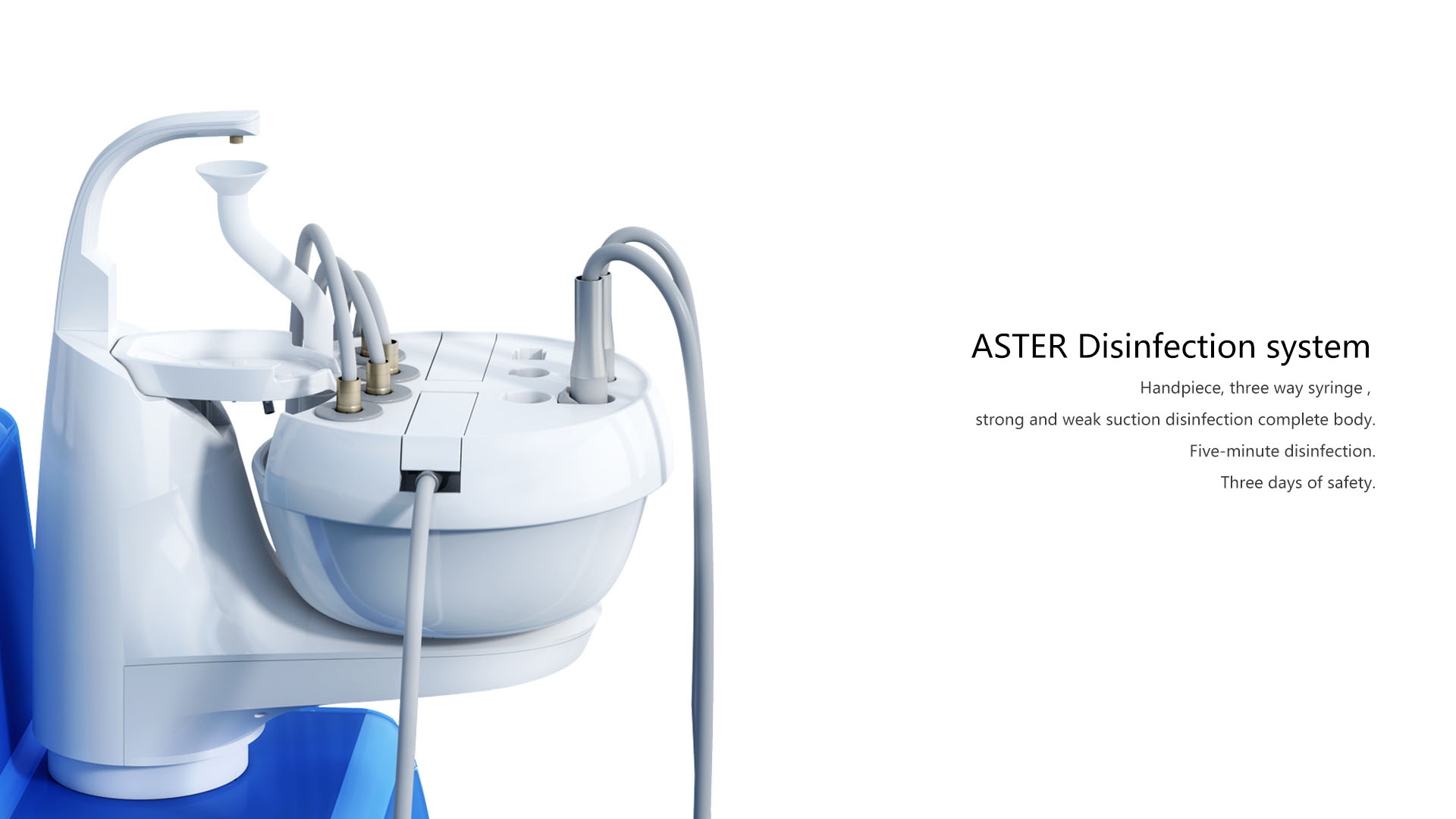

-- Handpiece tubings and Spittoon disinfection system
Well rounded,Offering you the best.
-- Low noise motor
-- German made silicone handpiece tubing
-- USA made air tubing and water tubing
-- Stainless Steel Pipe for foot pedal

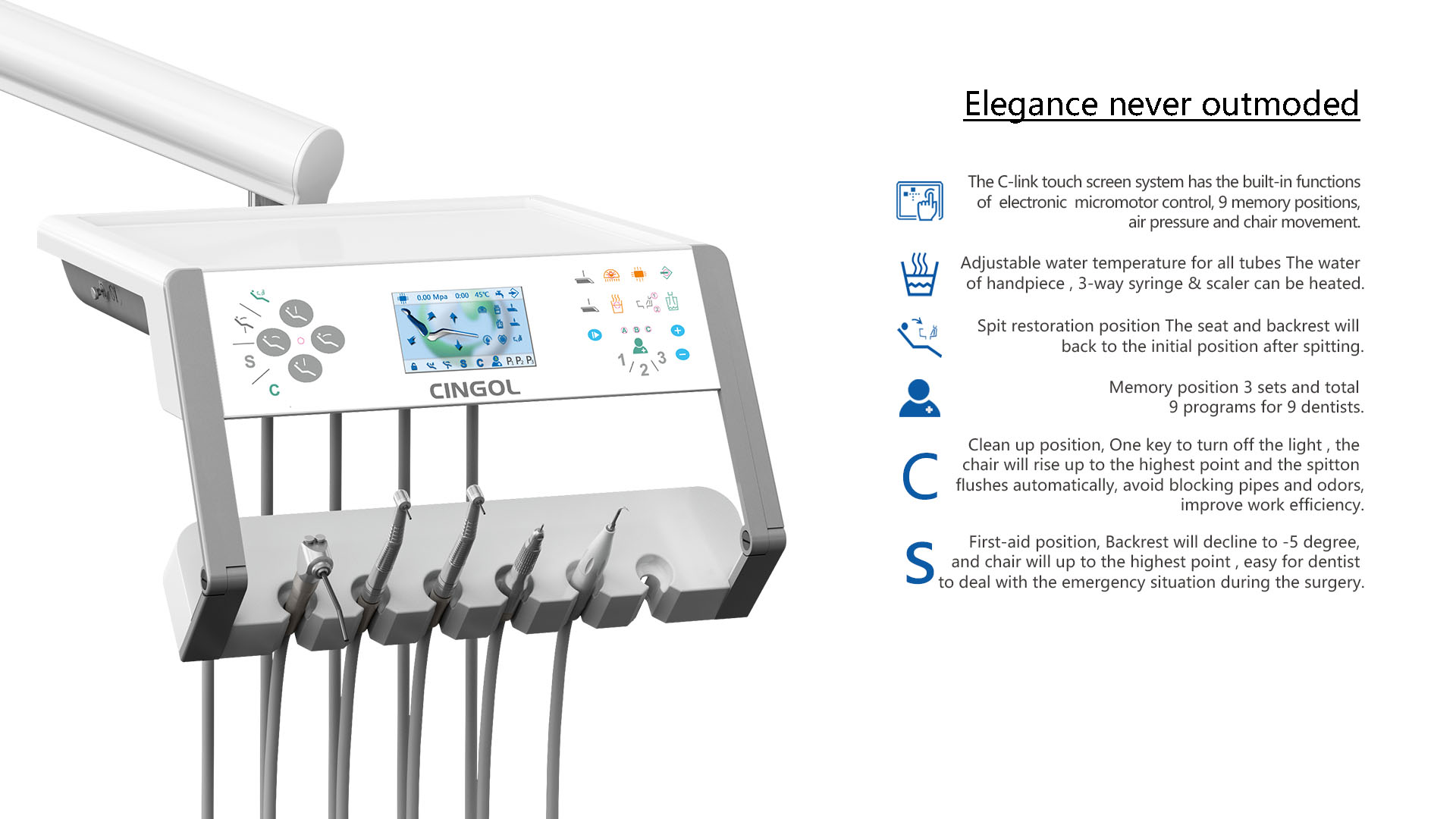

- Touch panel control instrument tray with metal base.

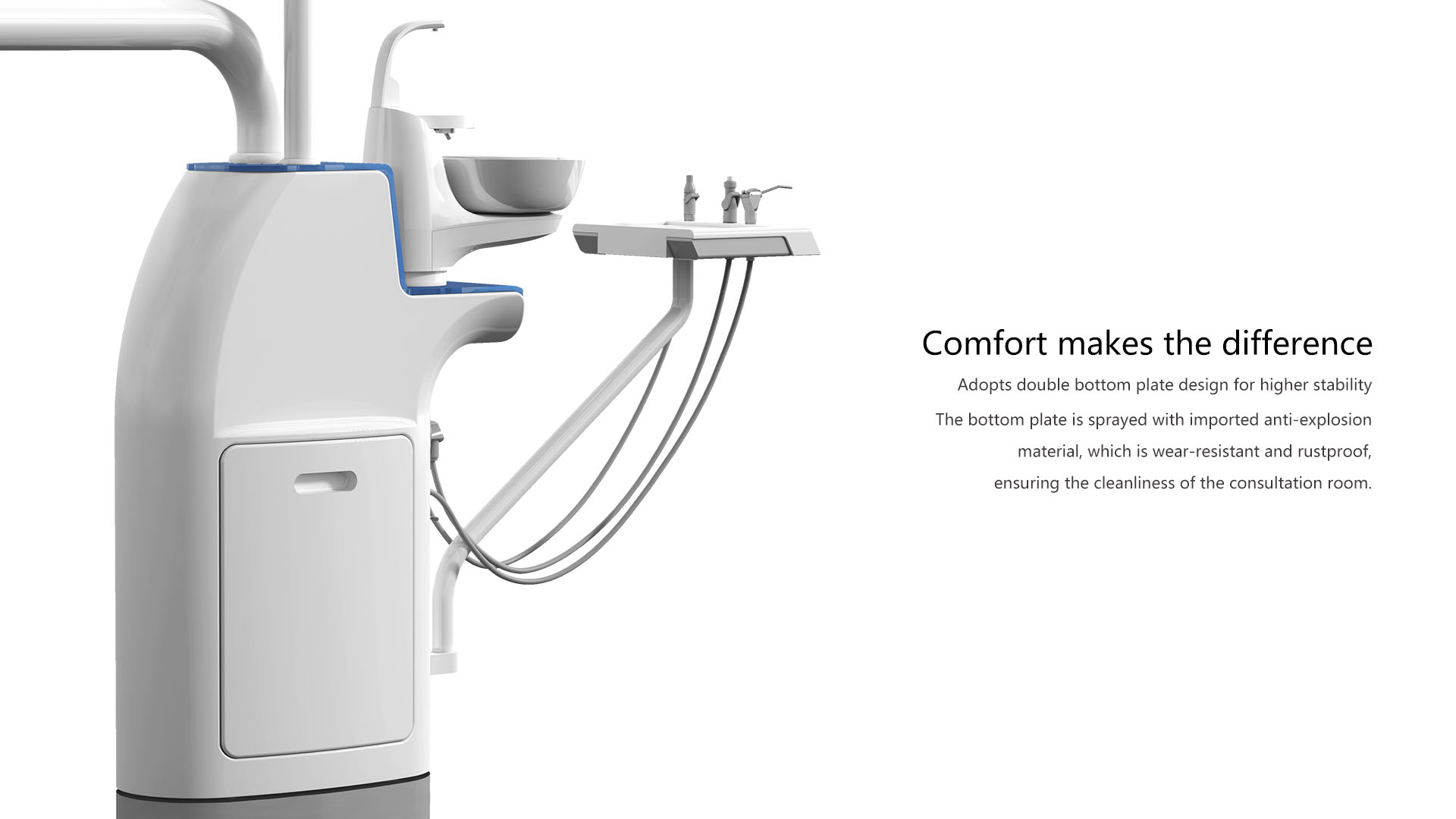

- Rotatable dental unit cabinet box facilitates 4-hand operation and easy for maintenance.

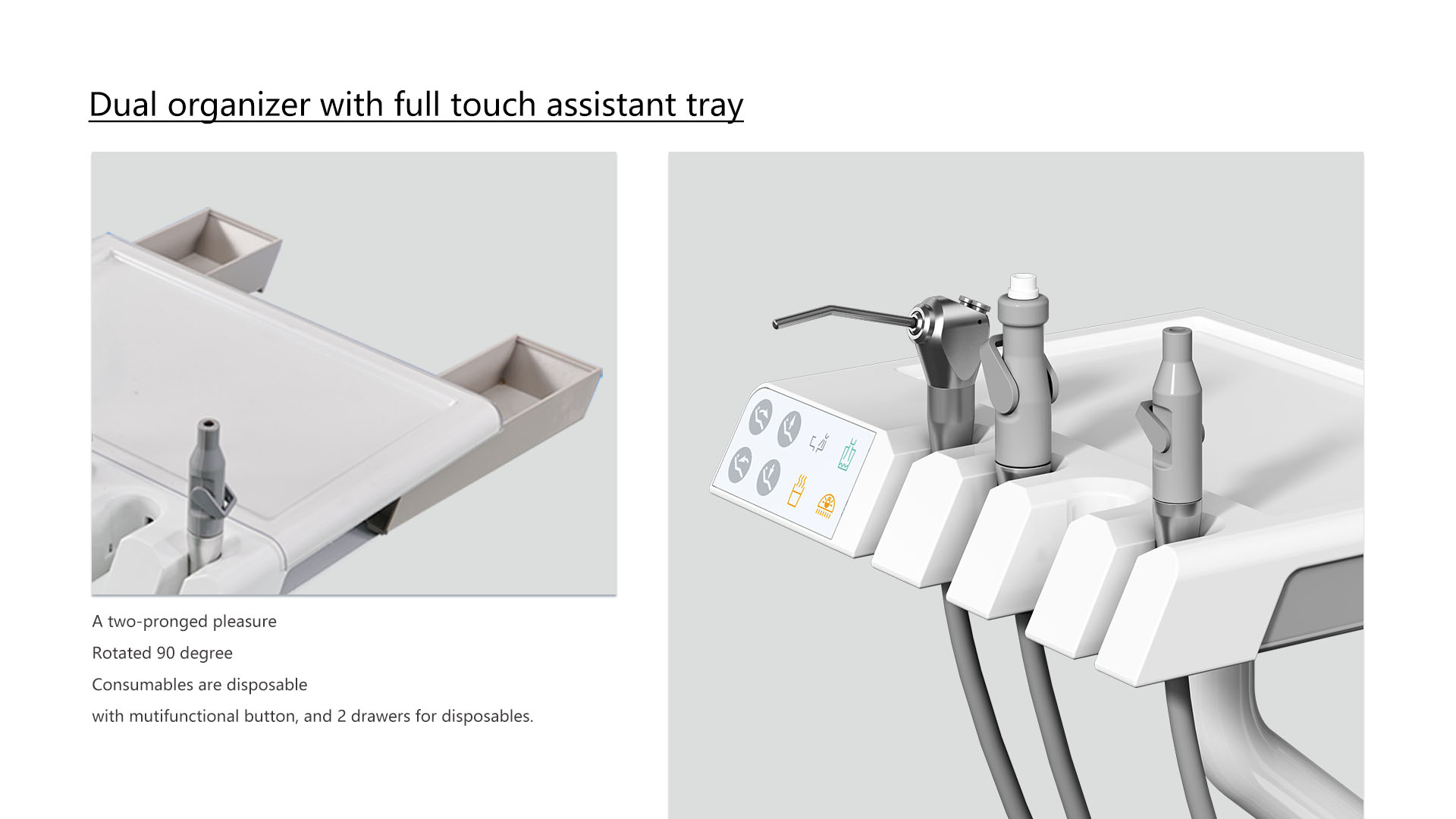

- Multi-functional Assistant Tray with drawers allows assistant to control chair position, cuspidor flushing ,water heating and cup filling. Also two drawers for frequently-used instruments.

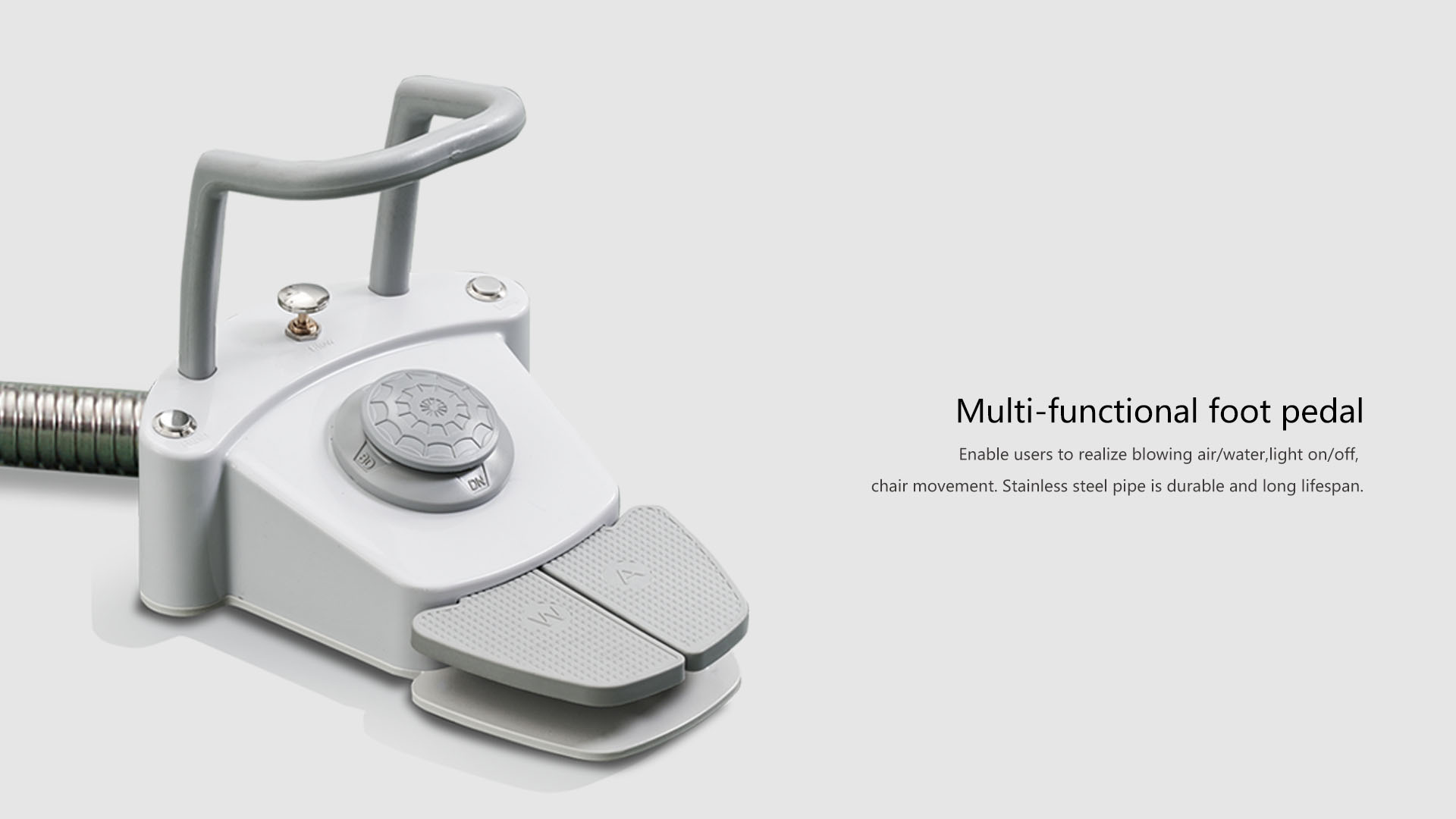

- Multi-Functional Foot Pedal is easy to use and efficient for dentist.

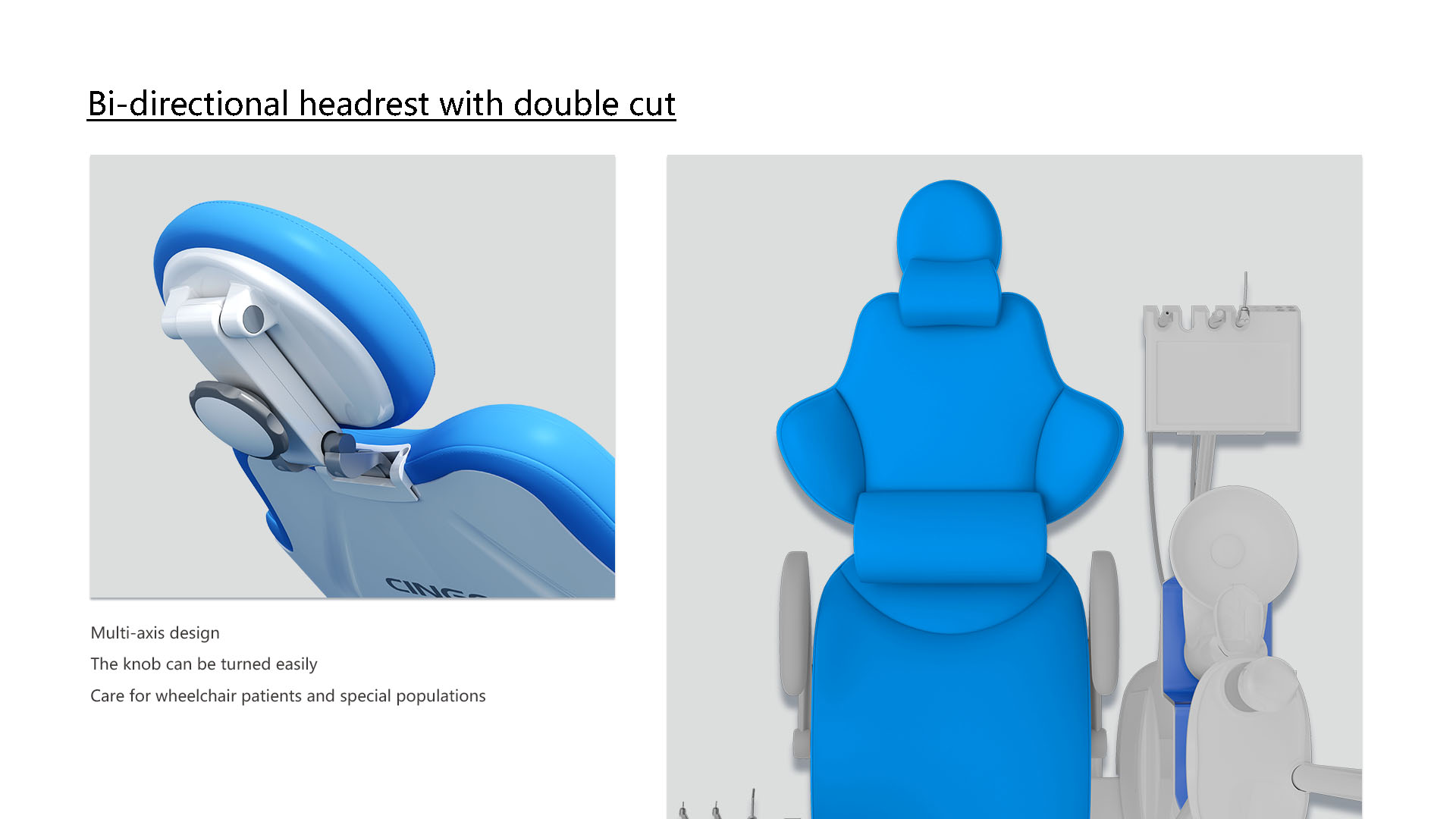

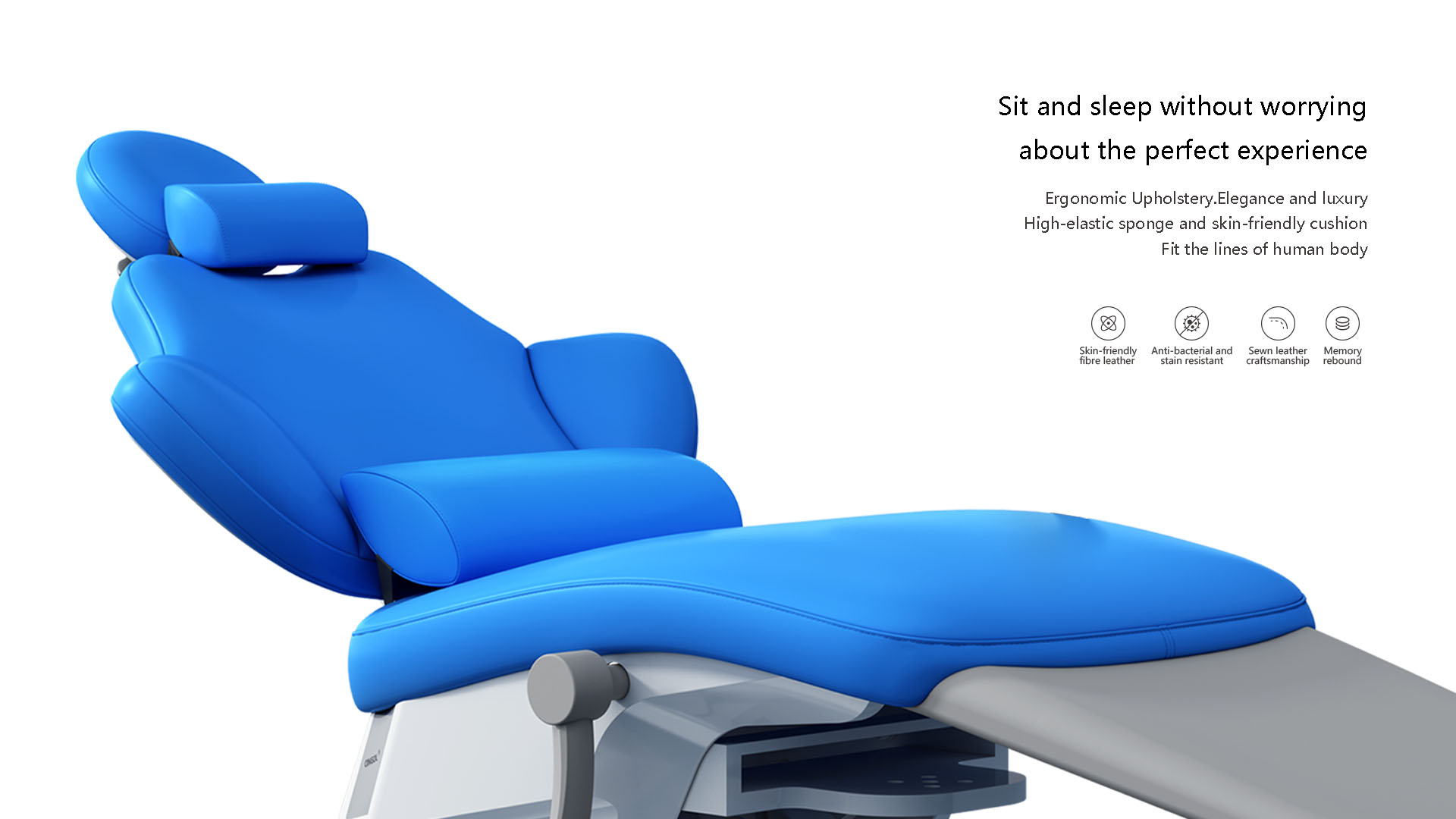

- Ergonomics designed Chair fits human body seamless,comfortable for patient during long time surgery.

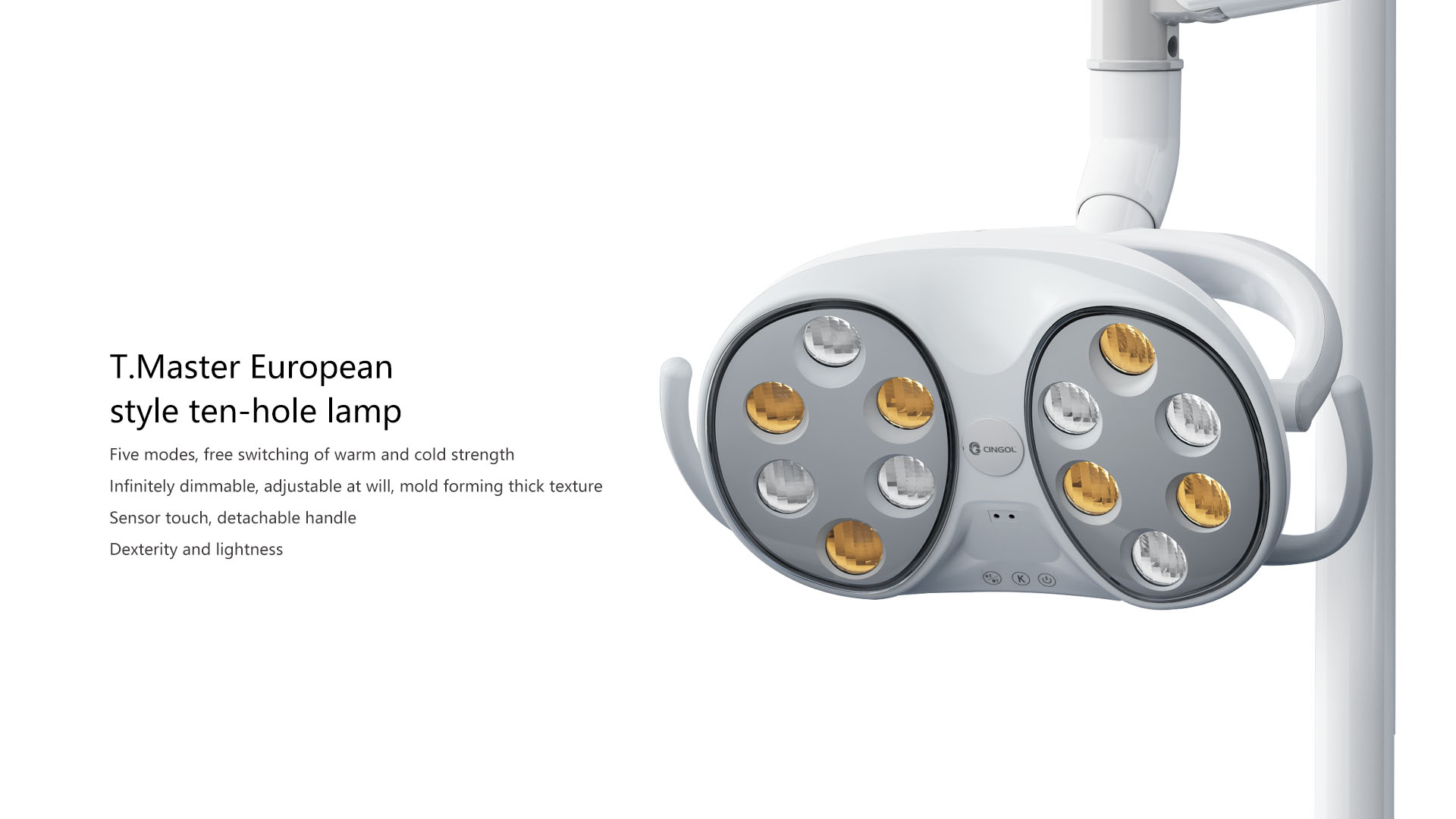

- Dimmable LED Operation Light is shadowless focus,flexible and easy to use.
- 3-In-1 Main Switch &Emergency Stop allows to turn on/off the power/water/air system with one switch, simple and efficient. Moreover,it is an emergency stop switch.
- Ergonomic Doctor Stool with 6 ways adjustment allow doctor to choose the suitable position.
- DC 5V Universal USB port allows mobile phones charging.
- LED Digital display for water temperature,surgical time reminder, air pressure.
Input Voltage : AC220V-230V
Water Pressure : 0.20-0.40Mpa/2.0-4.0bar
Air Pressure :0.55-0.80Mpa/5.5-8.0bar
Output : ≥55L/min (water vacuum)
≥120L/min (air vacuum)
Weight : 235kg
Input voltage: AC12V±10%
Max Lux: ≥25000Lux
Min Lux: ≤8000Lux
Color Temp.: 5000-5700K
Dimmable: PIR sensor by 2 grades light intensity adjustment
|High speed 4 holes handpiece(turbine) tubing
|Low speed 4 holes handpiece(turbine) tubing
|Water tank (air pressurized)
|Strong suction and saliva ejector(weak suction)
|LED operating light
|24V Gear motor
|Cuspidor flush & Cup filler
|Built in Film viewer 24V
Standard :PU Leather
OPTIONAL: Micro Fiber Leather
