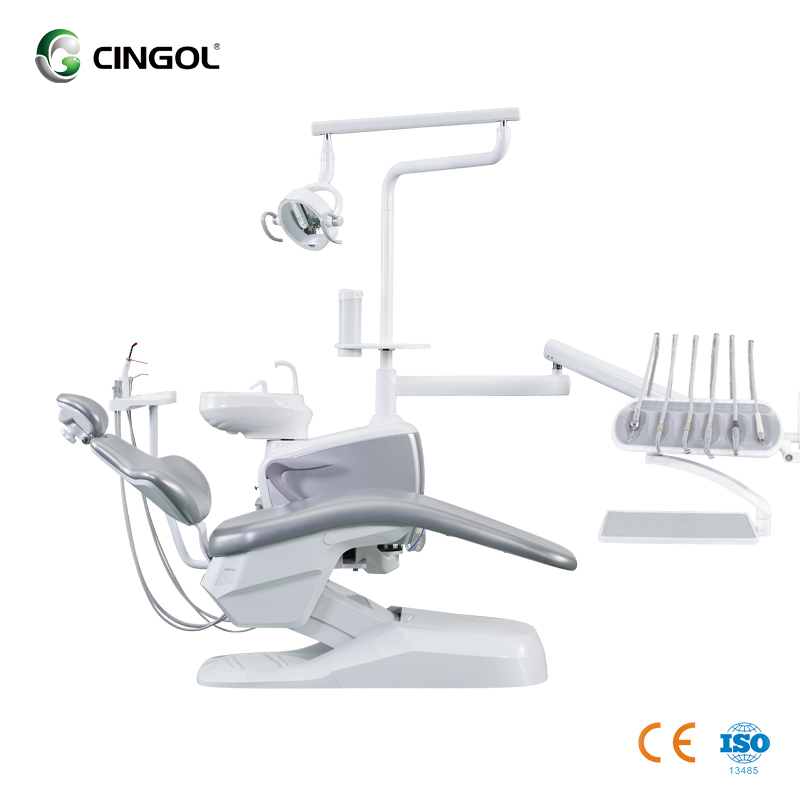

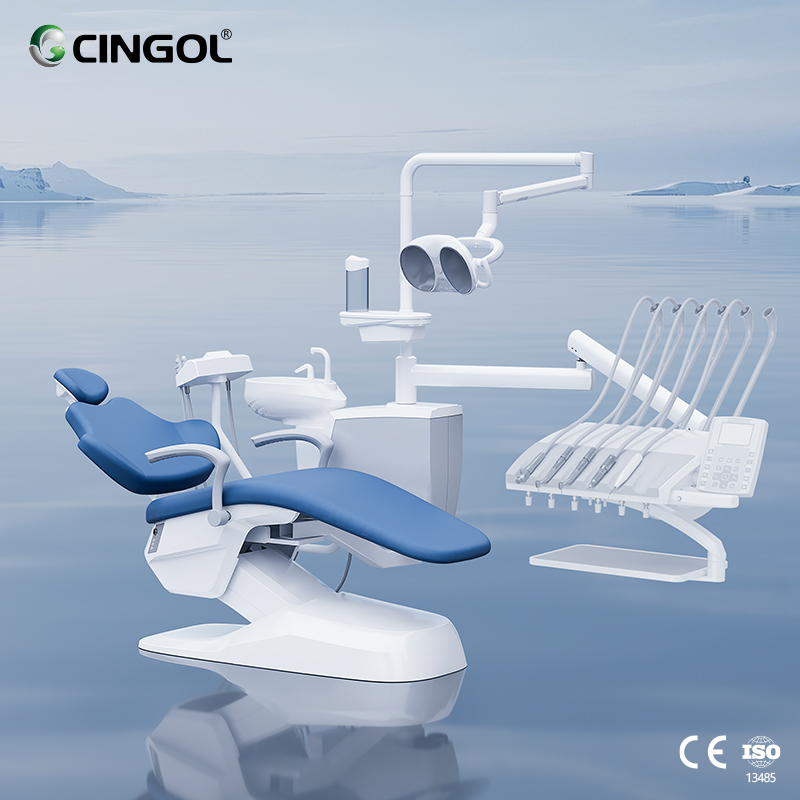

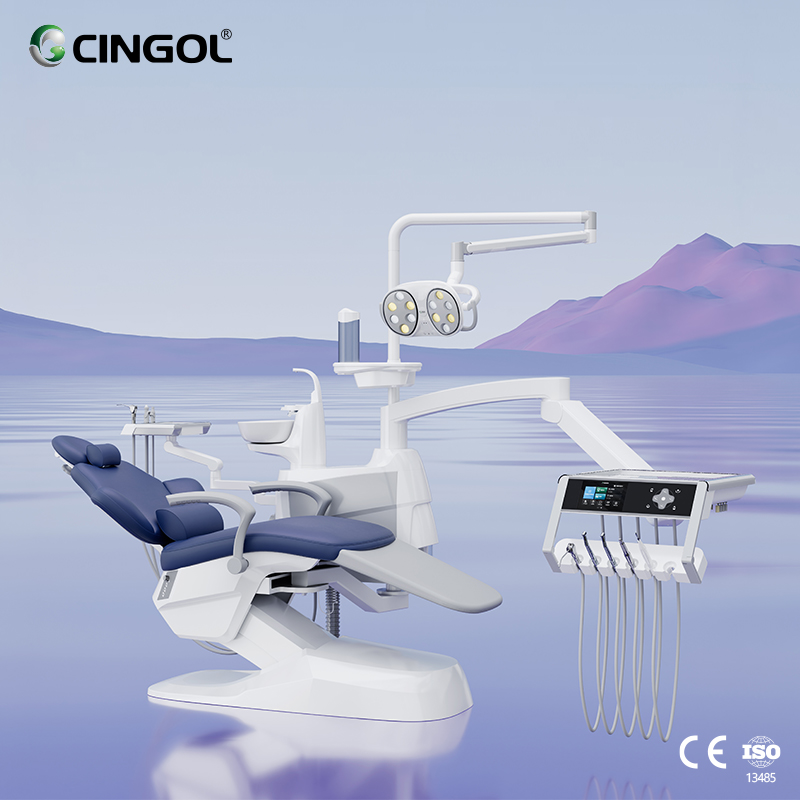

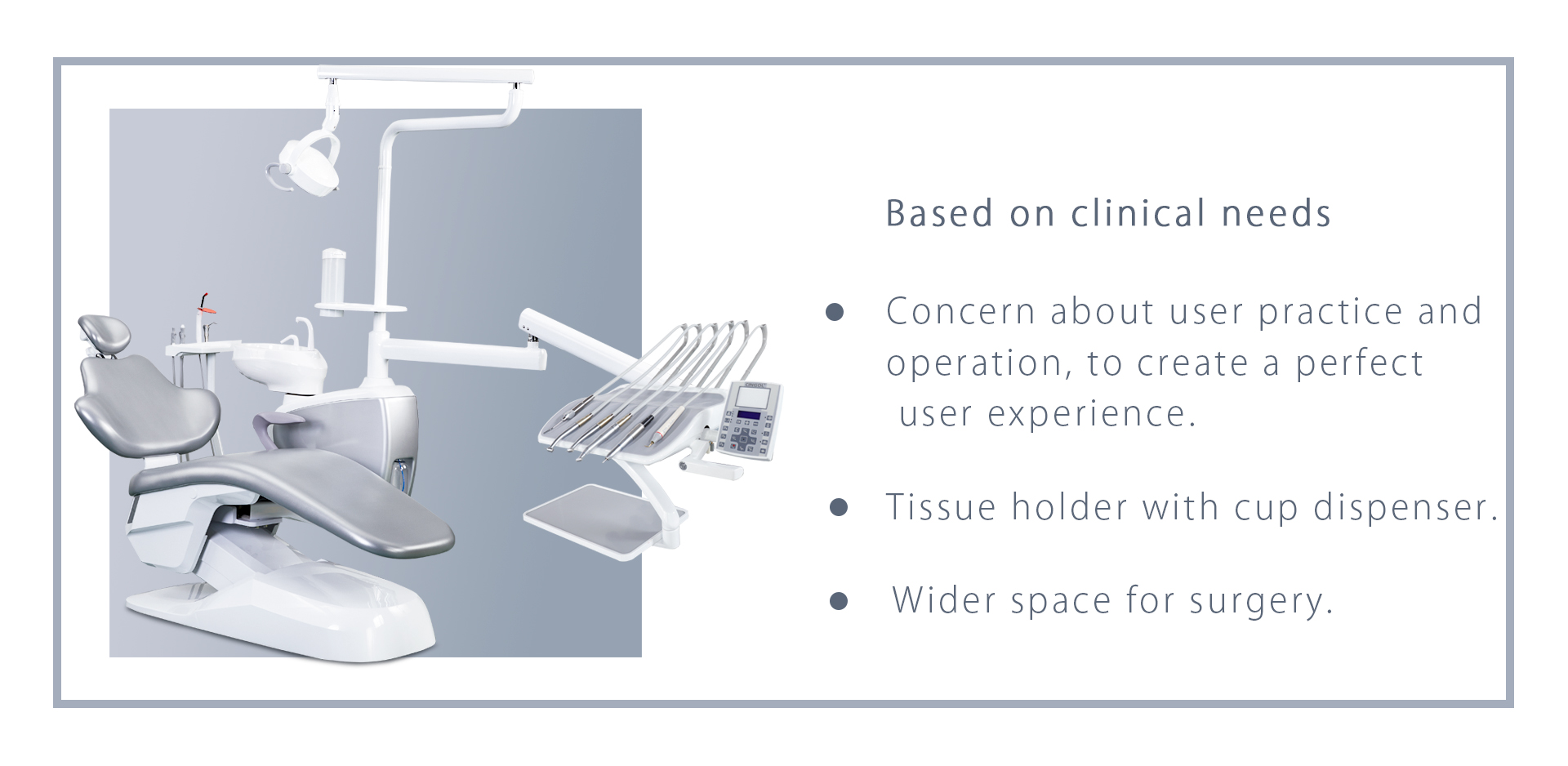

X1 STANDARD TOP MOUNTED DENTAL UNIT
- X1 STANDARD TOP MOUNTED DENTAL UNIT

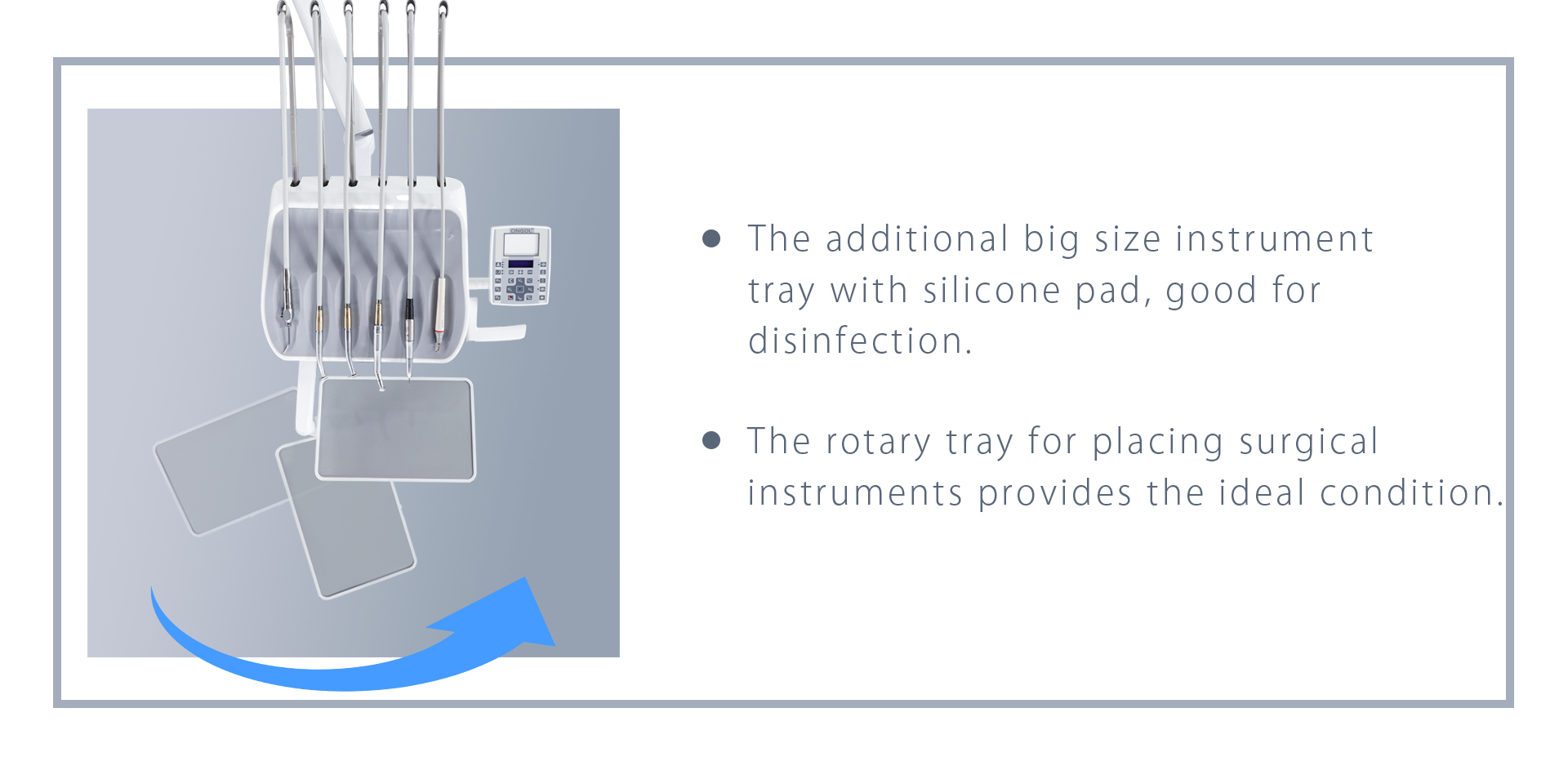

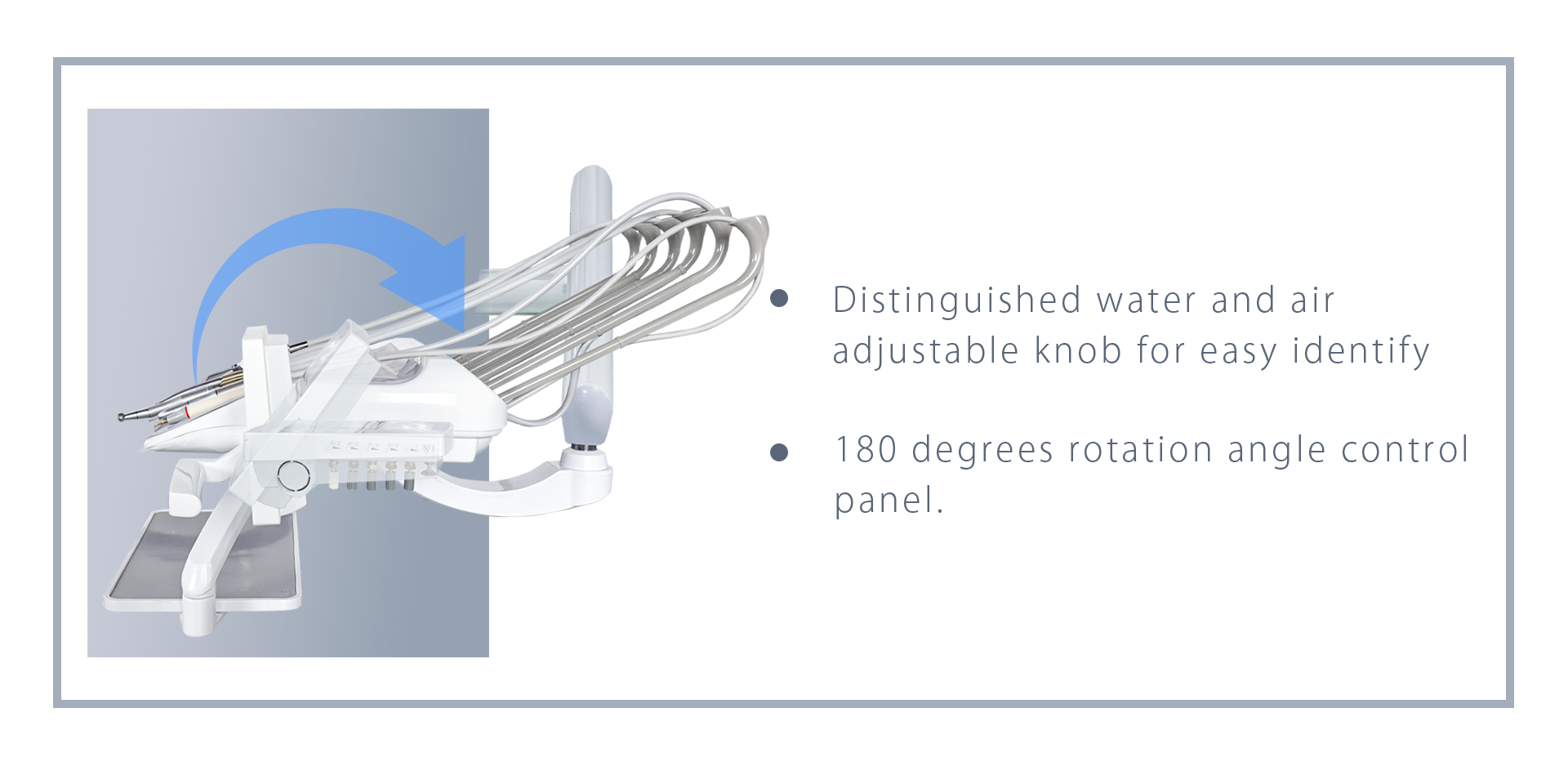

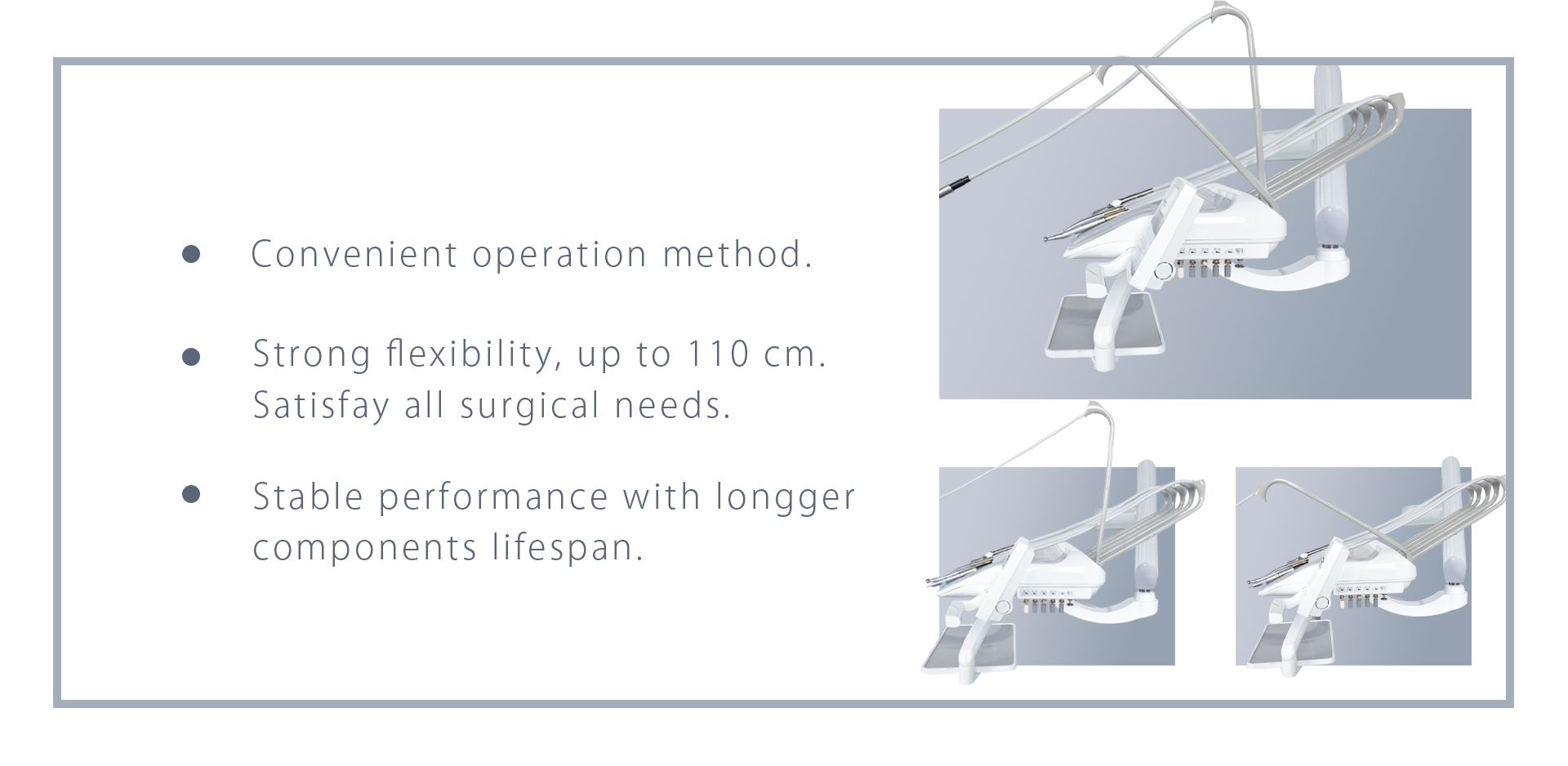

- Flexiable Instrument Tray with 6 hoses rack

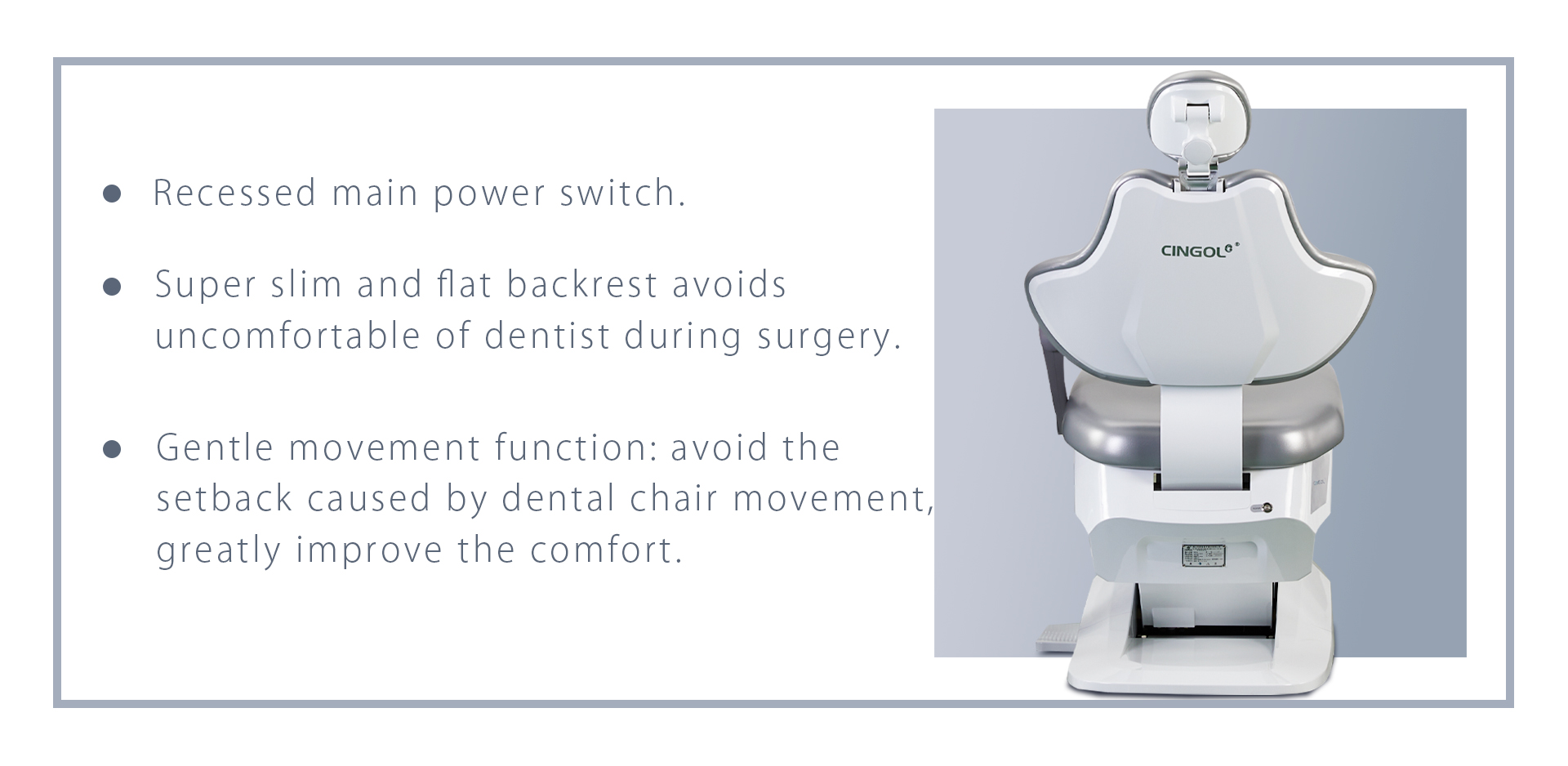

- Dismountable metal backrest
- The backrest is fully metal base and dismountable, easy for installation ,clean and cushion replacement

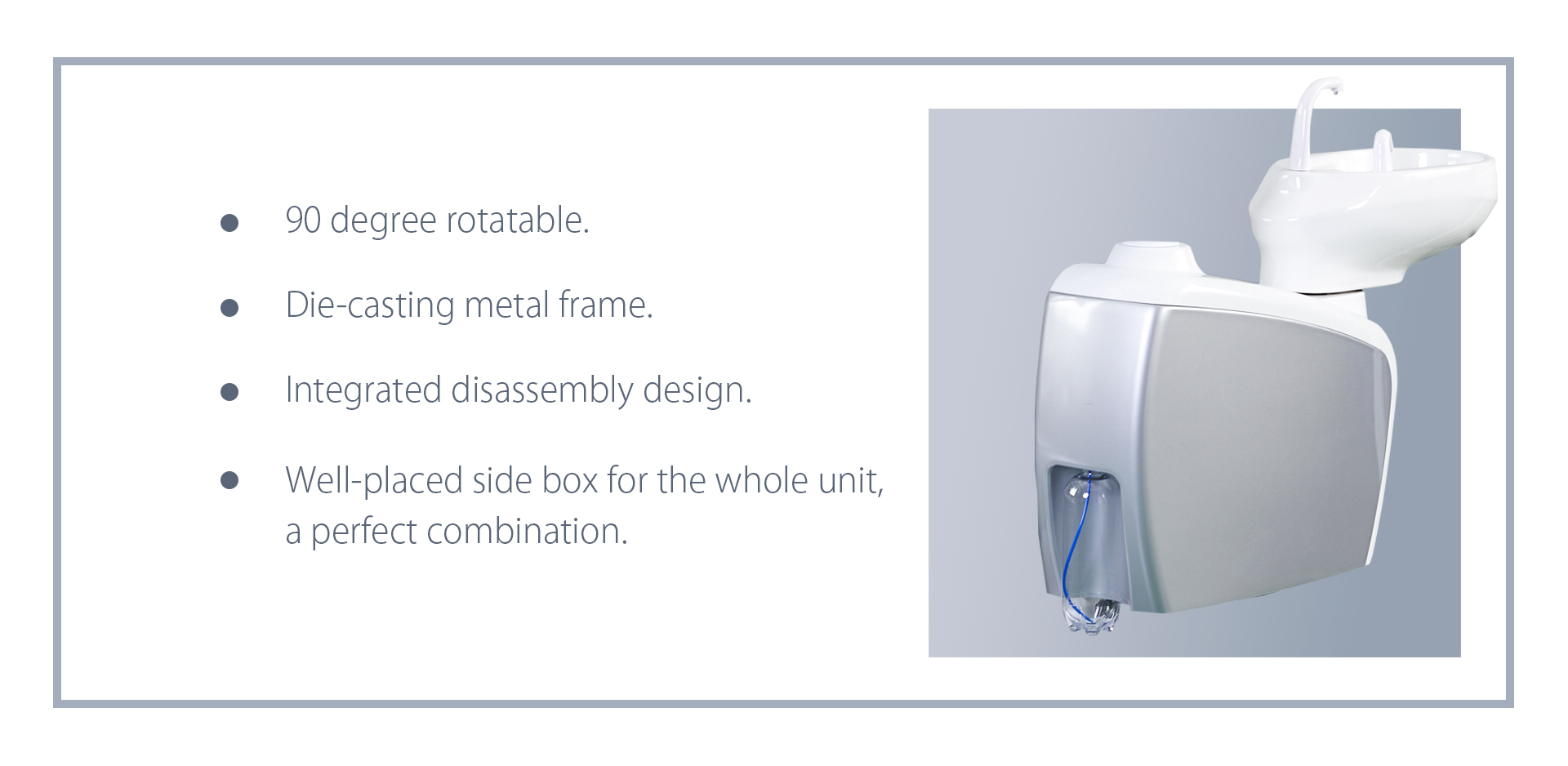

- Rotatable dental unit cabinet box facilitates 4-hand operation and easy for maintenance

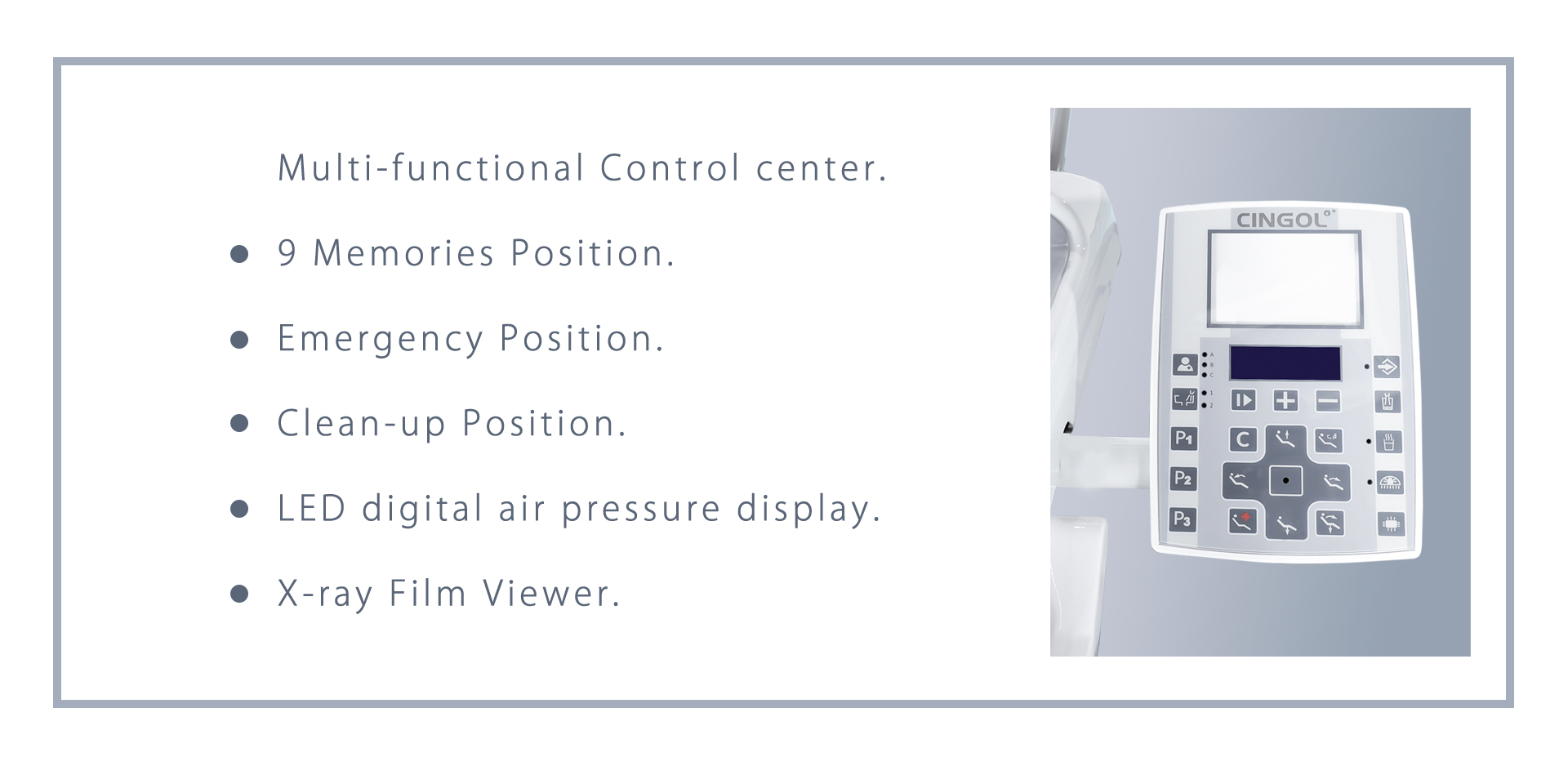

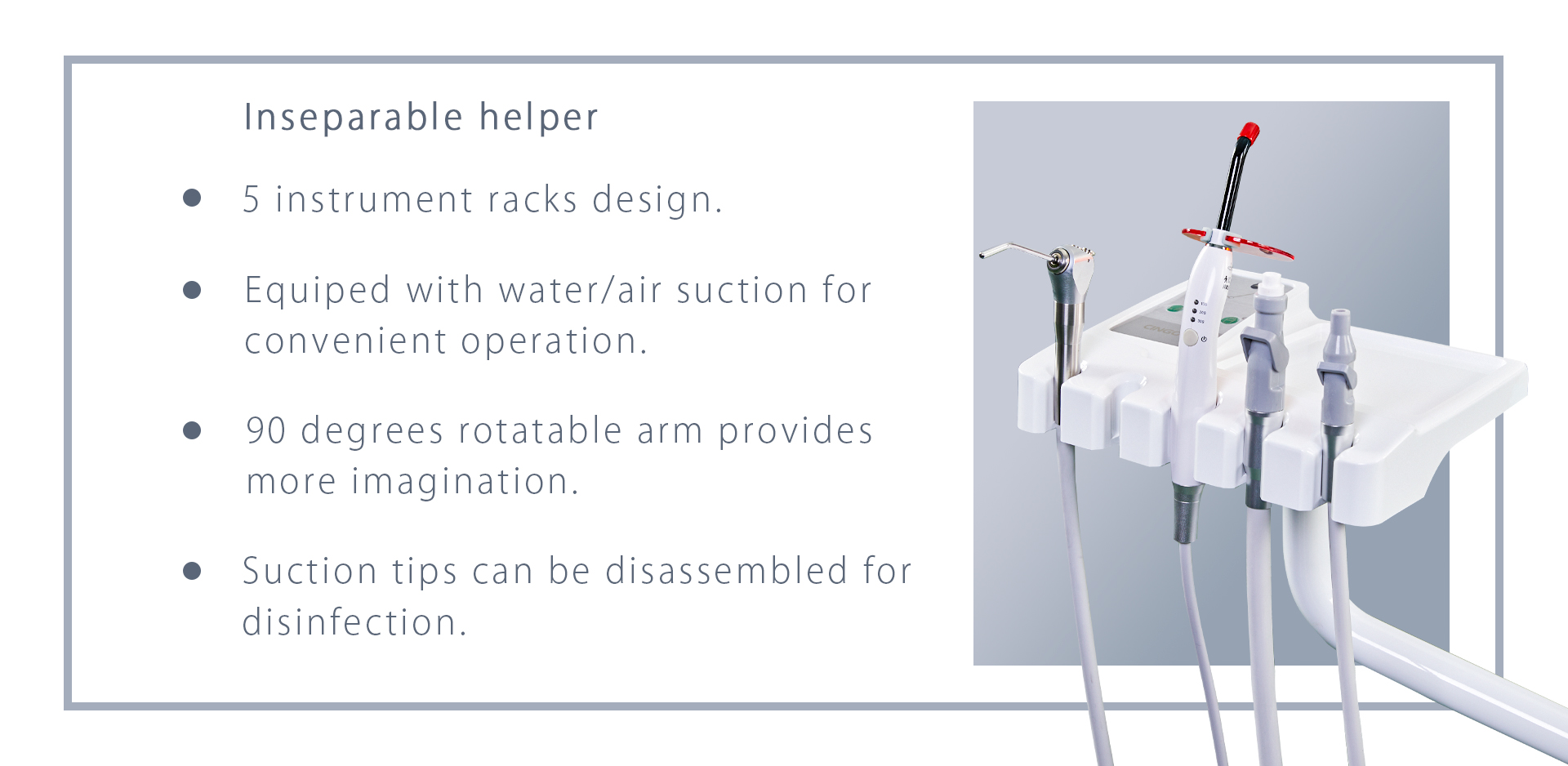

- Multi-functional Assistant Tray allows assistant to control chair position,cuspidor flushing ,water heating and cup filling.

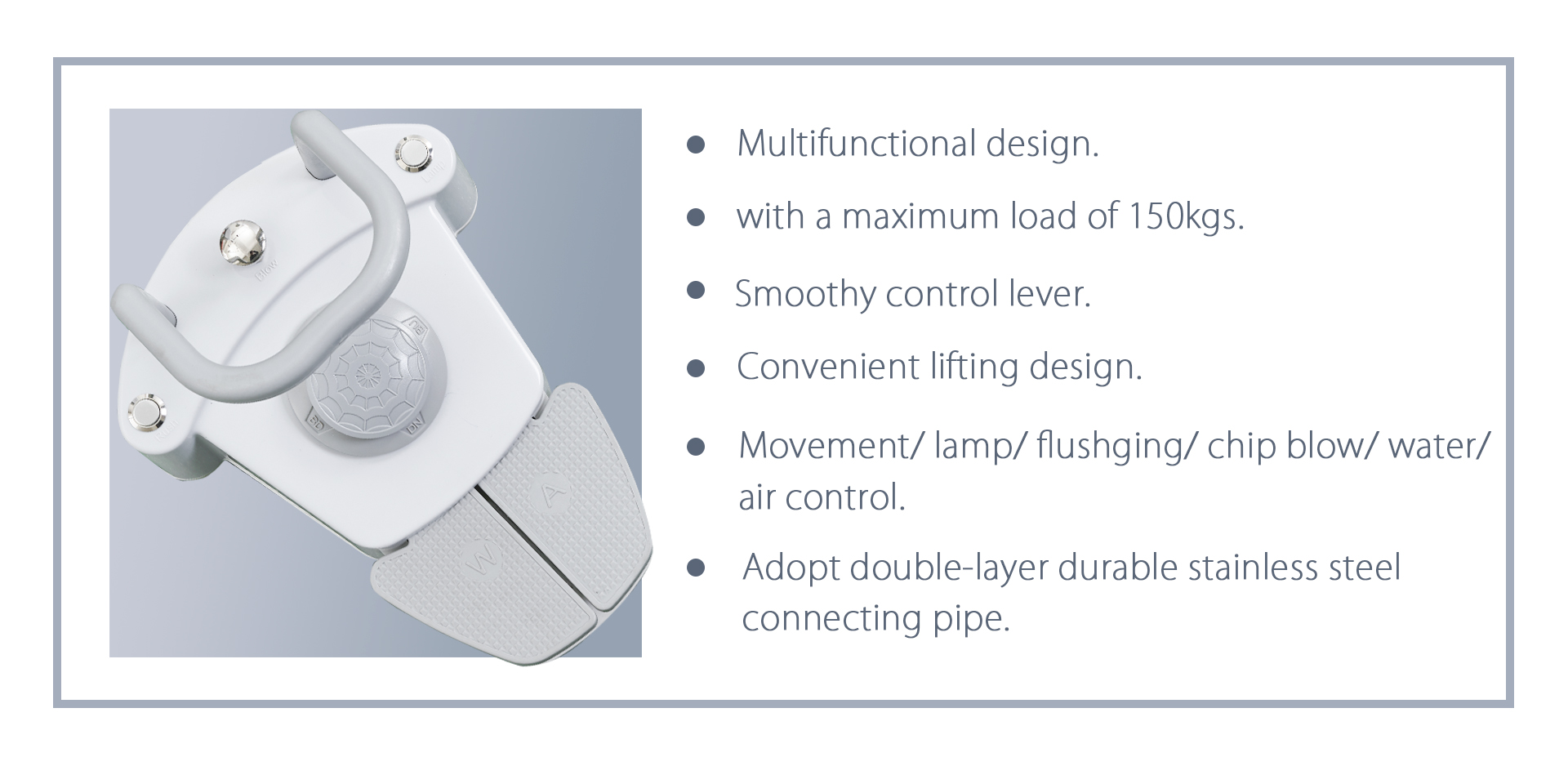

- Multi-Functional Foot Pedal is easy to use and efficient for dentist.

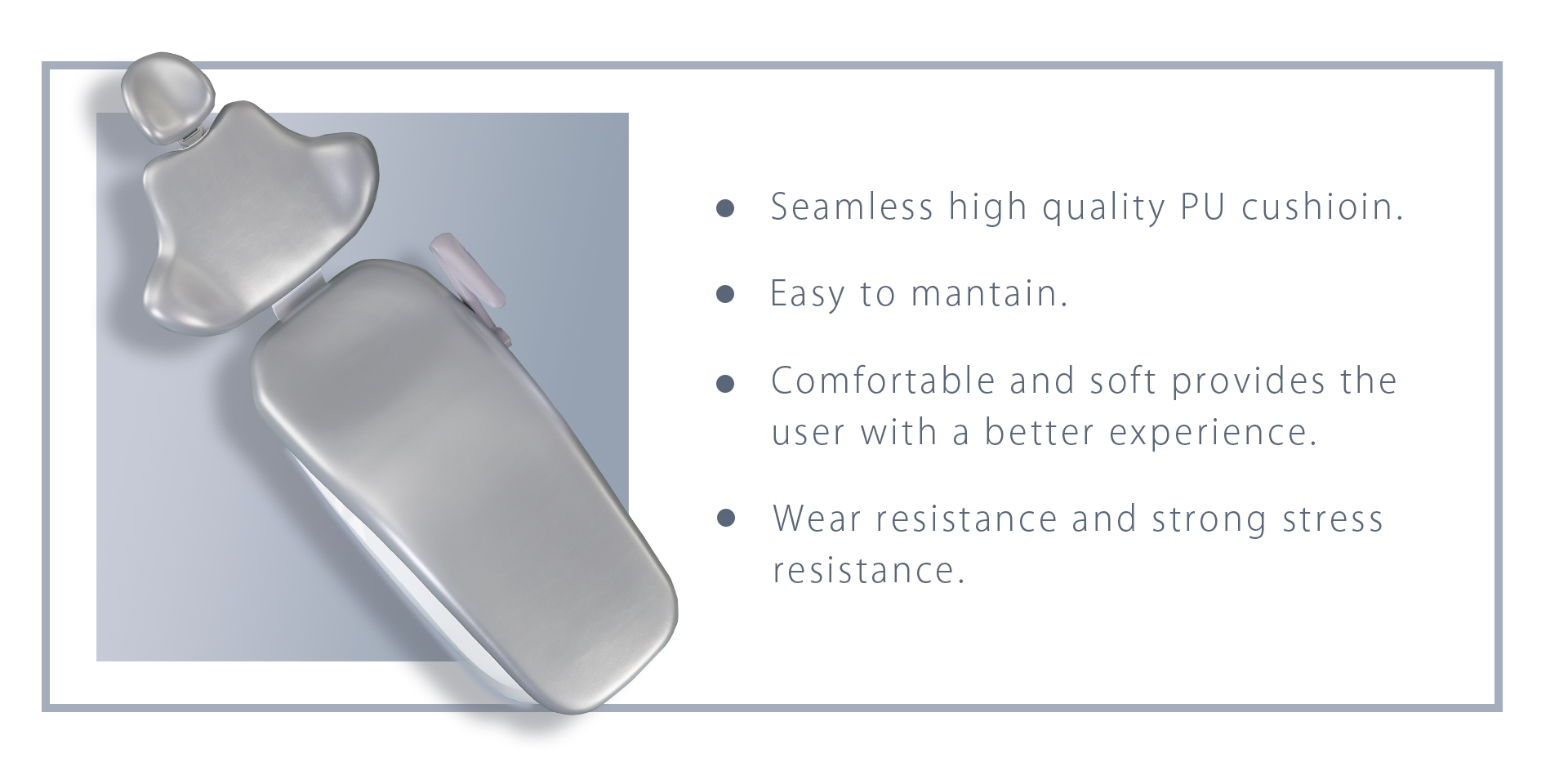

- Ergonomics designed Chair fits human body seamless,comfortable for patient during long time surgery.

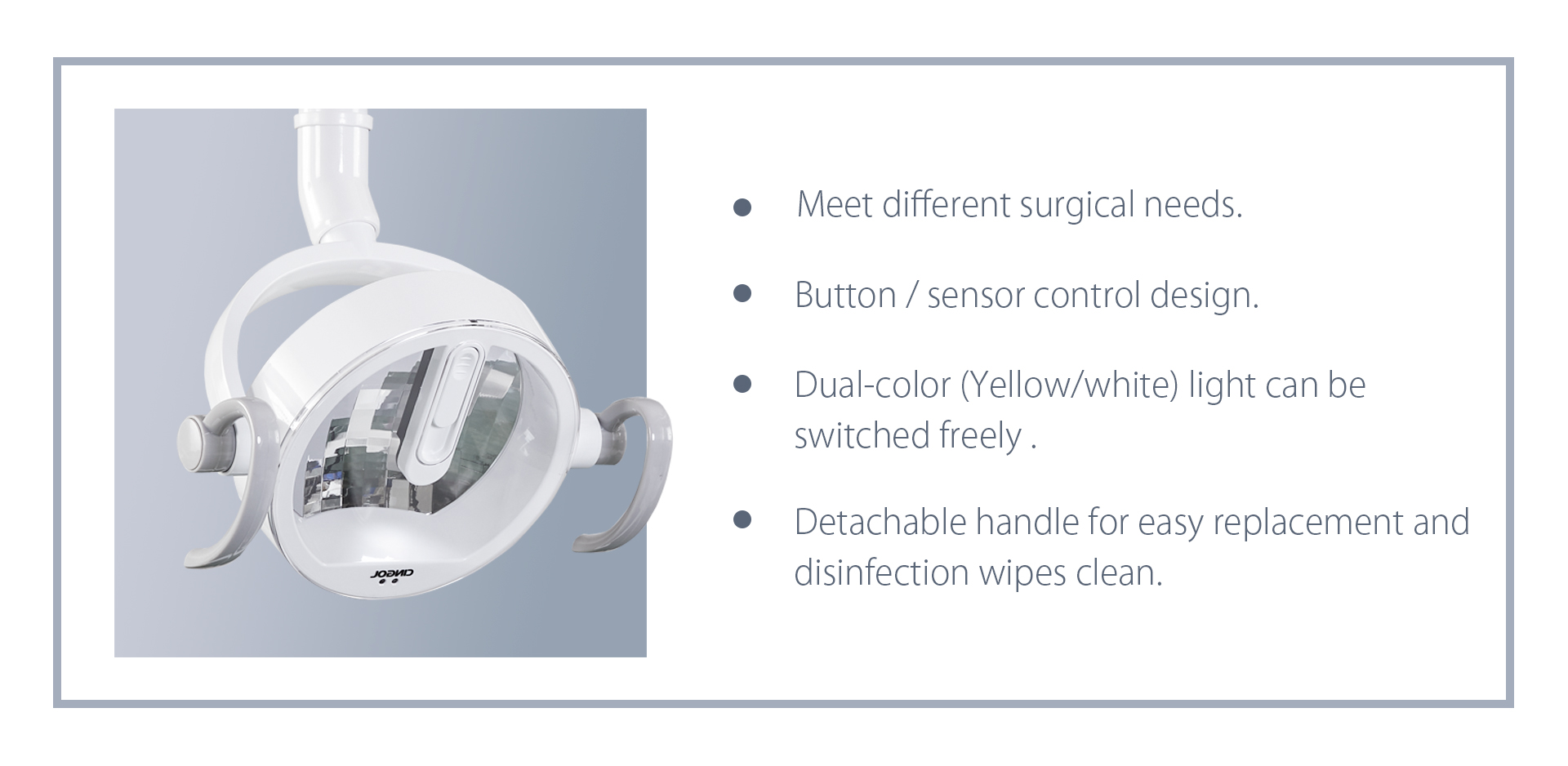

- Dimmable LED Operation Light is shadowless focus,flexible and easy to use.
- 3-In-1 Main Switch &Emergency Stop allows to turn on/off the power/water/air system with one switch, simple and efficient. Moreover,it is an emergency stop switch.
- Ergonomic Doctor Stool with 6 ways adjustment allow doctor to choose the suitable position.
- DC 5V Universal USB port allows mobile phones charging.
Product Details
Parameter
Options
Inquiry

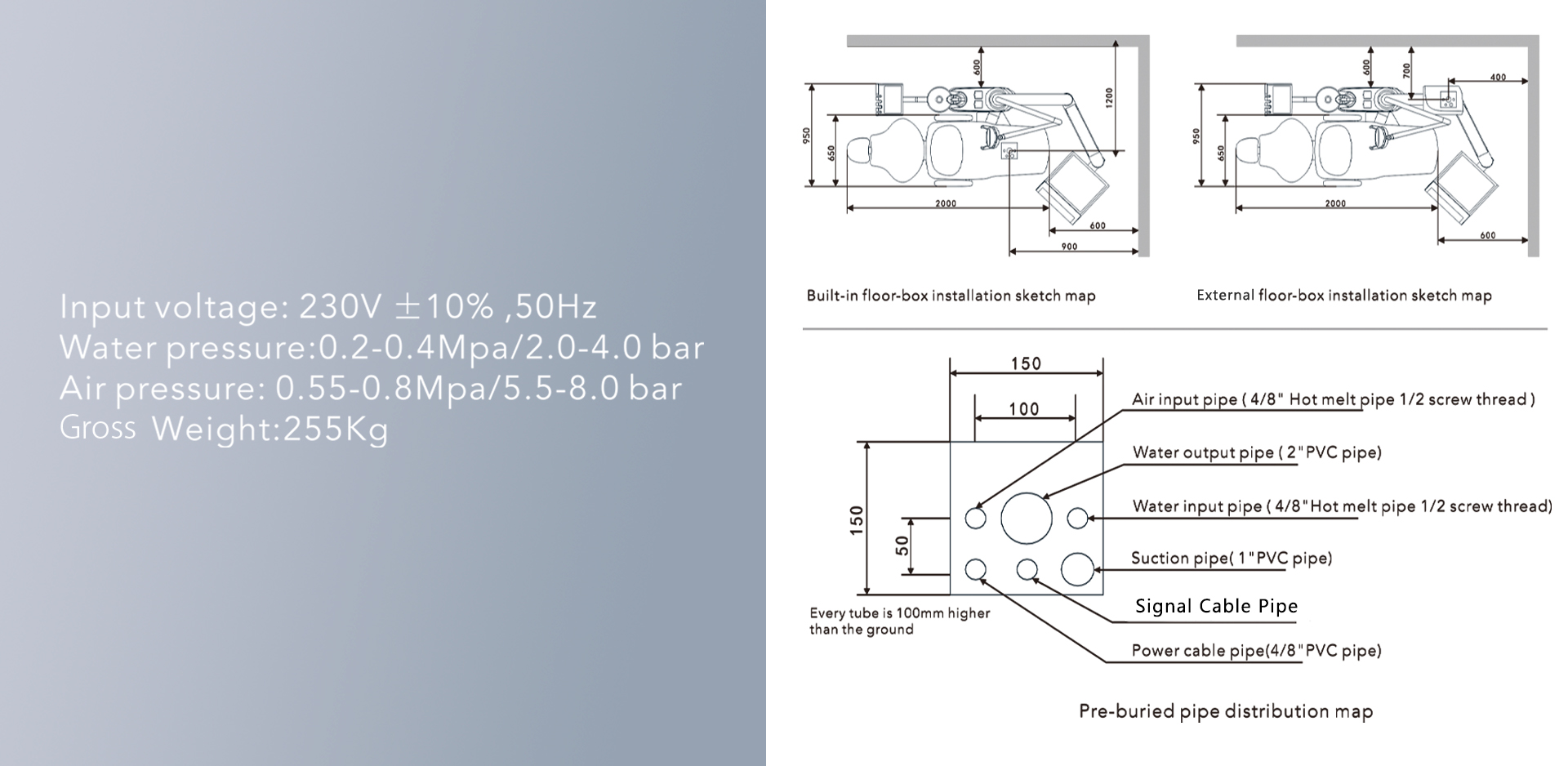

TECHNICAL PARAMETERS:
Dental Unit
Input Voltage : AC220V-230V
Water Pressure : 0.20-0.40Mpa/2.0-4.0bar
Air Pressure :0.55-0.80Mpa/5.5-8.0bar
Output : ≥55L/min (water vacuum)
≥55L/min (air vacuum)
Weight : 235kg
LED Lamp
Input voltage: AC12V-24V, 50/60Hz
Power: 5W
Max Lux: ≥25000Lux
Min Lux: ≤3000Lux
Color Temp.: 5000-5300K
Dimmable: PIR sensor by 2 grades light intensity adjustment
Weight: 1000g
CONFIGURATION:
Dental Unit
Input Voltage : AC220V-230V
Water Pressure : 0.20-0.40Mpa/2.0-4.0bar
Air Pressure :0.55-0.80Mpa/5.5-8.0bar
Output : ≥55L/min (water vacuum)
≥55L/min (air vacuum)
Weight : 235kg
LED Lamp
Input voltage: AC12V-24V, 50/60Hz
Power: 5W
Max Lux: ≥25000Lux
Min Lux: ≤3000Lux
Color Temp.: 5000-5300K
Dimmable: PIR sensor by 2 grades light intensity adjustment
Weight: 1000g
CONFIGURATION:
| High speed 4 holes handpiece(turbine) tubing | 2 pcs |
| Low speed 4 holes handpiece(turbine) tubing | 1 pc |
| Water tank (air pressurized) | 1 pc |
| Syringe | 2 pcs |
| Strong suction and saliva ejector(weak suction) | 1 set |
| LED operating light | 1 pc |
| 24V Gear motor | 2 pcs(2 up/down motor) |
| Cuspidor flush & Cup filler | 1 set |
| Multifunctional Pedal | 1 pc |
| Built in Film viewer 24V | 1 pc |
| Dentist stool | 1 pc |

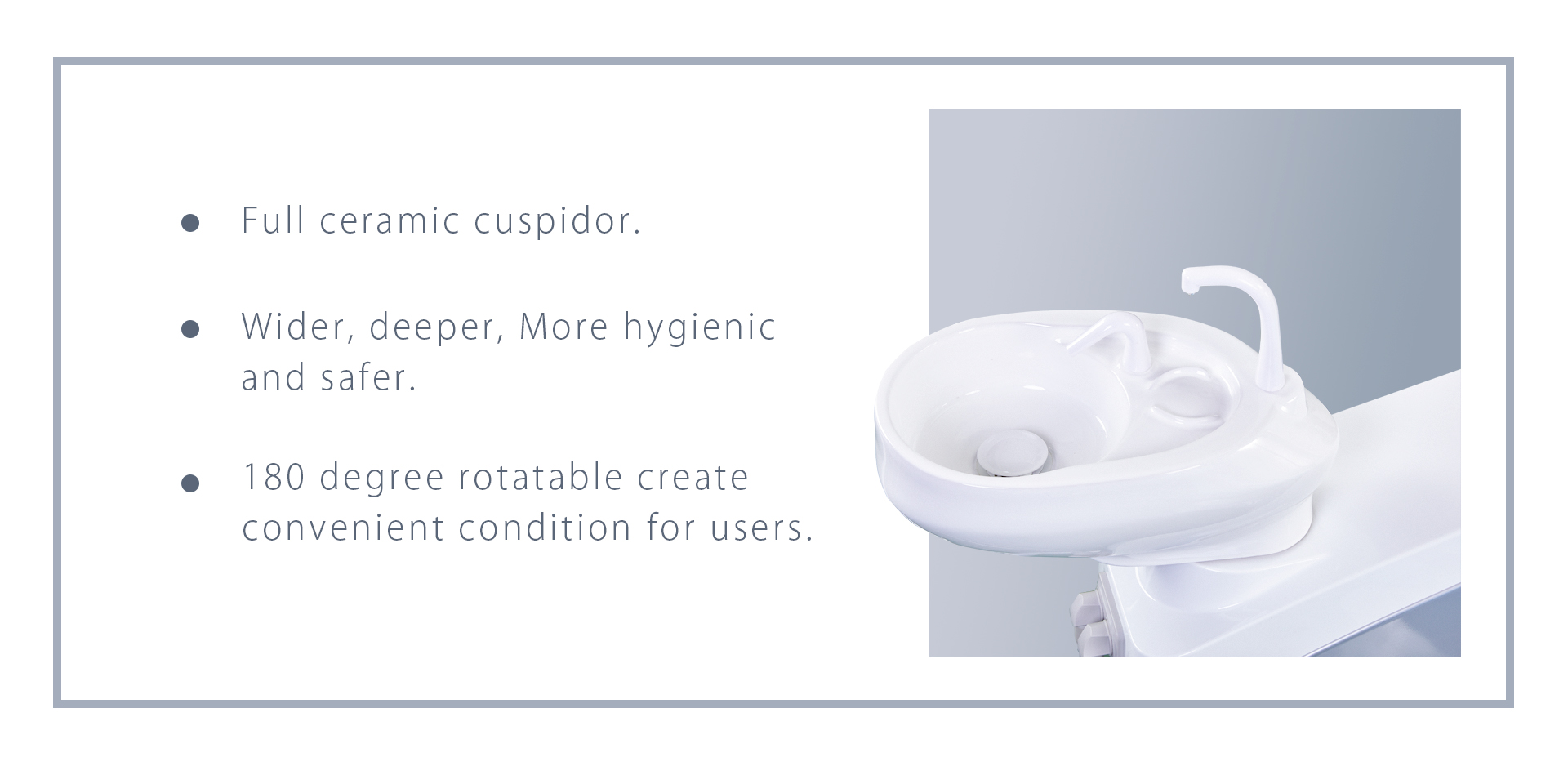

| Cuspidor | 1 pc |

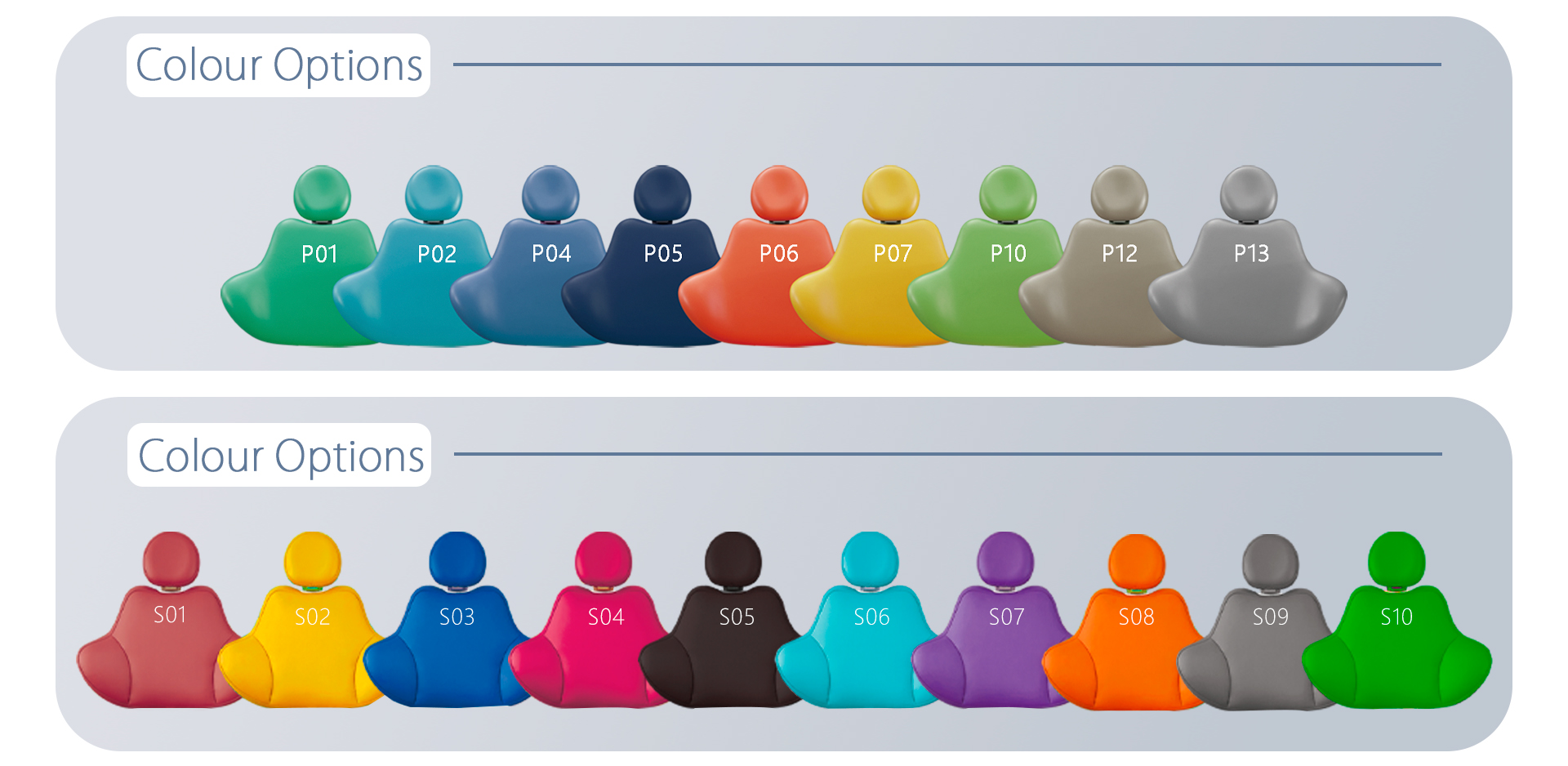

| PU upholstery | 1 set |
| Main tray | 1 pc |
| Assistant tray | 1 pc |
The manufacture reserve the right to alter and improve the specification without notice.
