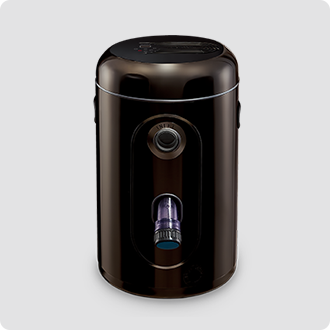

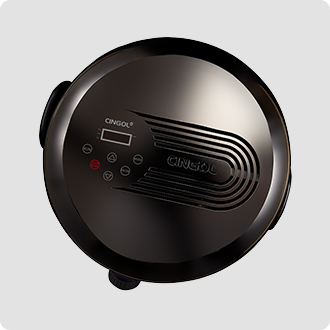

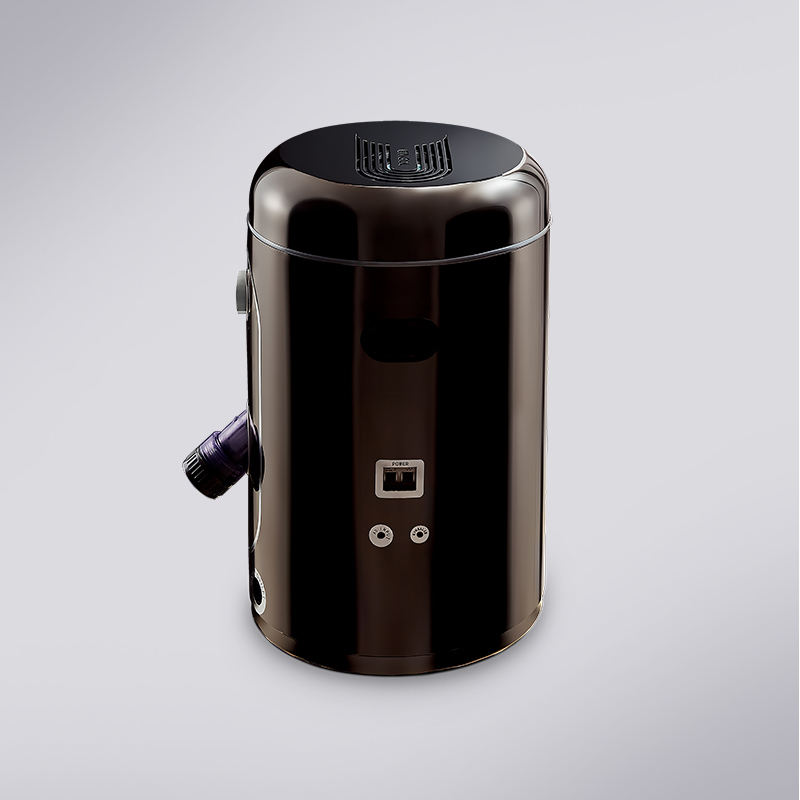

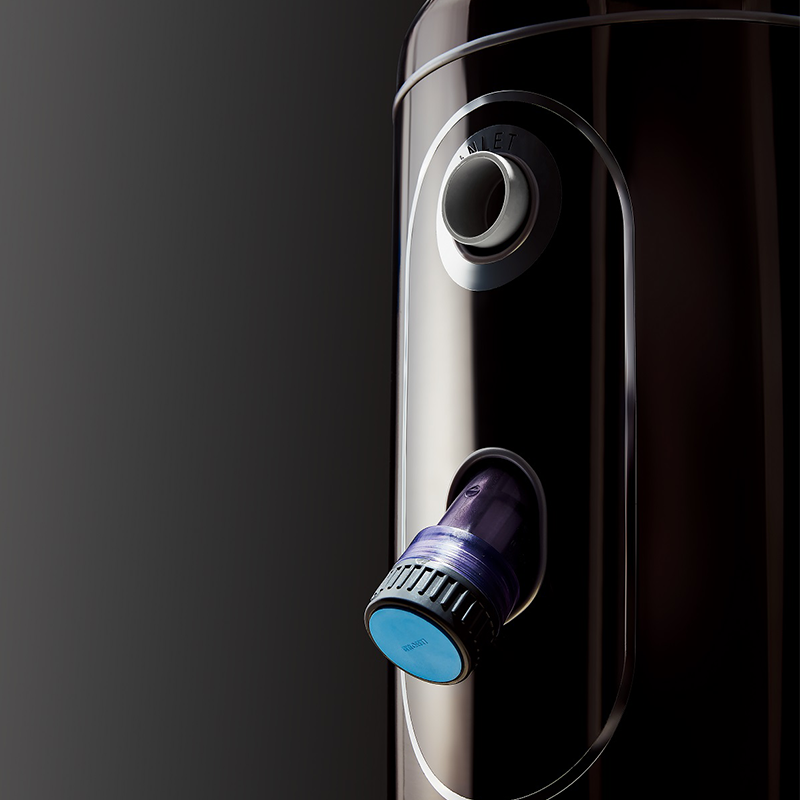

Central Suction System CS10
Work with 10-12 sets of Dental Units.
This system is designed for operating with a dental unit, siphoning off Water, Saliva and Food Residues from Patient’s mouth during the treatment.
MORE INTELLIGENT
-- Odm dental chair Vacuum pressure regulating automatically according to the quantity of working dental units.
-- Delay stop to avoid deposition of dirt.
-- Fault self-checking, Automatic safety stop.
MORE DURABLE
-- Stainless steel Integration moulding shell with coating
odm dental chair
EASE TO USE
-- Touch panel
-- Special designed filter, low resistance and high flow rate,easy to clean and maintain.
Central Suction System
| MODEL | CS4 | CS6 | CS10 |
| Voltage | AC200-240V | AC200-240V | AC200-240V |
| Frequency | 50-60HZ | 50-60HZ | 50-60HZ |
| Power | 0.83 KW | 1.3 KW | 1.7 KW |
| Electrical Current | 5.6A | 5.4A | 7.6A |
| Rate of Flow | 130m³/H | 105m³/H | 195m³/H |
| Pressure | -200（MBAR) | -340(MBAR) | -380(MBAR) |
| Serves for sets of Dental Unit | 3-4 sets | 6-8 sets | 10-12 sets |
| Decibel Level | 65（dBA） | 62（dBA) | 71（dBA) |
| Weight | 29KG | 40KG | 55KG |
| Size | 330*400*570MM | 405*470*600MM | 455*525*640MM |
