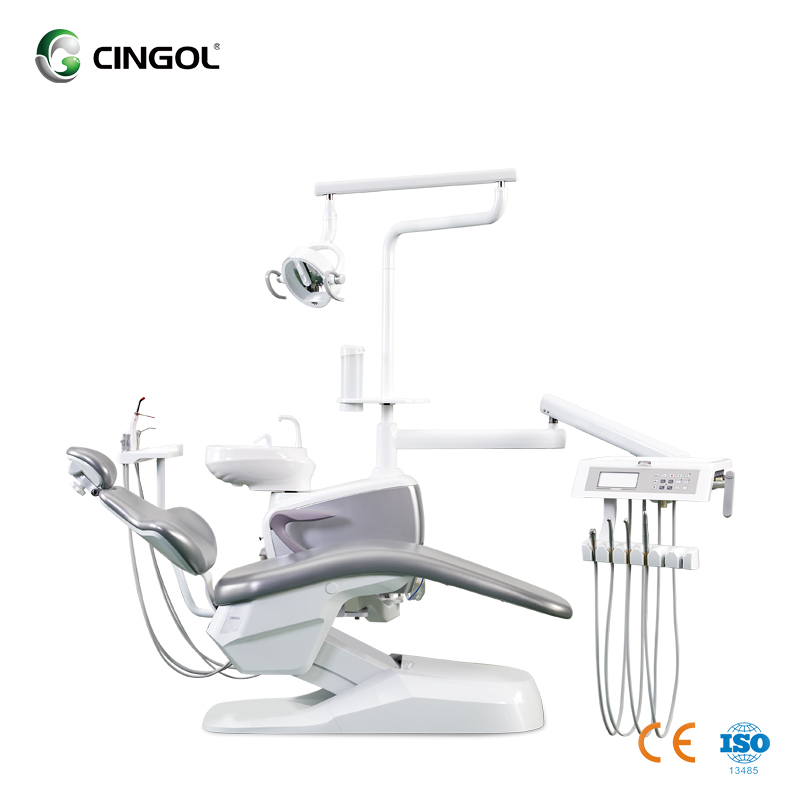

X1 Dental Chair/Dental Unit
DESCRIPTION
The all new X1, the next generation of X1 dental unit,
More than 10 functions were upgraded.

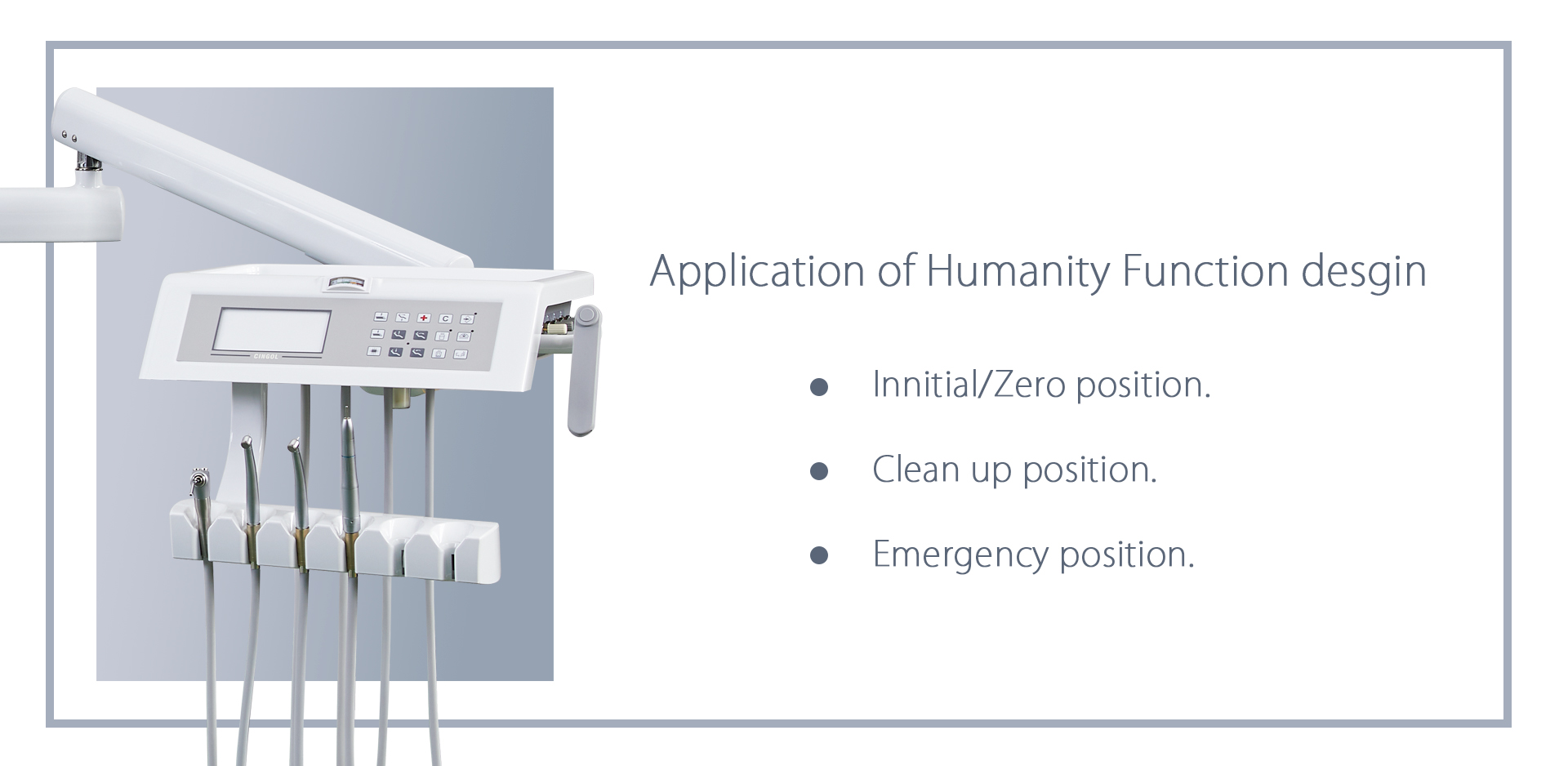

Music player,Human–machine interactive system, positions memory...and more.
Dentist and Patient will enjoy more humanization, more efficiency.
The all new X1, the next generation of X1 dental unit,
More than 10 functions were upgraded.
Music player,Human–machine interactive system, positions memory...and more.
Dentist and Patient will enjoy more humanization, more efficiency.
Product Details
Parameter
Options
Inquiry
















TECHNICAL PARAMETERS:
Dental Unit
Input Voltage : AC220V-230V
Water Pressure : 0.20-0.40Mpa/2.0-4.0bar
Air Pressure :0.55-0.80Mpa/5.5-8.0bar
Output : ≥55L/min (water vacuum)
≥55L/min (air vacuum)
Weight : 235kg

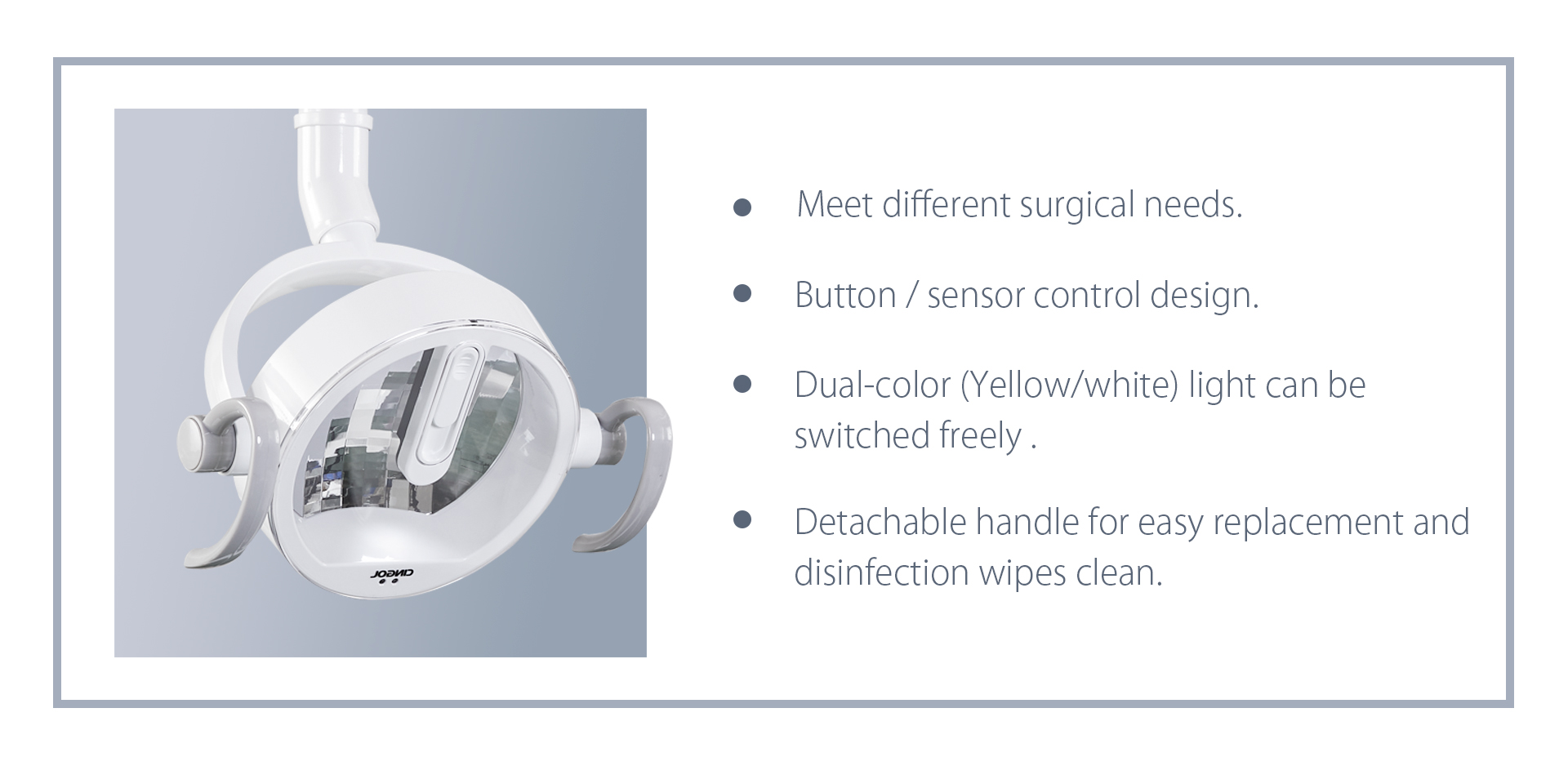

LED Lamp
Input voltage: AC12V-24V, 50/60Hz
Power: 5W
Max Lux: ≥25000Lux
Min Lux: ≤3000Lux
Color Temp.: 5000-5300K
Dimmable: PIR sensor by 2 grades light intensity adjustment
Weight: 1000g
CONFIGURATION:
Dental Unit
Input Voltage : AC220V-230V
Water Pressure : 0.20-0.40Mpa/2.0-4.0bar
Air Pressure :0.55-0.80Mpa/5.5-8.0bar
Output : ≥55L/min (water vacuum)
≥55L/min (air vacuum)
Weight : 235kg
LED Lamp
Input voltage: AC12V-24V, 50/60Hz
Power: 5W
Max Lux: ≥25000Lux
Min Lux: ≤3000Lux
Color Temp.: 5000-5300K
Dimmable: PIR sensor by 2 grades light intensity adjustment
Weight: 1000g
CONFIGURATION:
High speed 4 holes handpiece(turbine) tubing | 2 pcs |
Low speed 4 holes handpiece(turbine) tubing | 1 pc |
Water tank (air pressurized) | 1 pc |
Syringe | 2 pcs |
Strong suction and saliva ejector(weak suction) | 1 set |
LED operating light | 1 pc |
24V Gear motor | 2 pcs(2 up/down motor) |

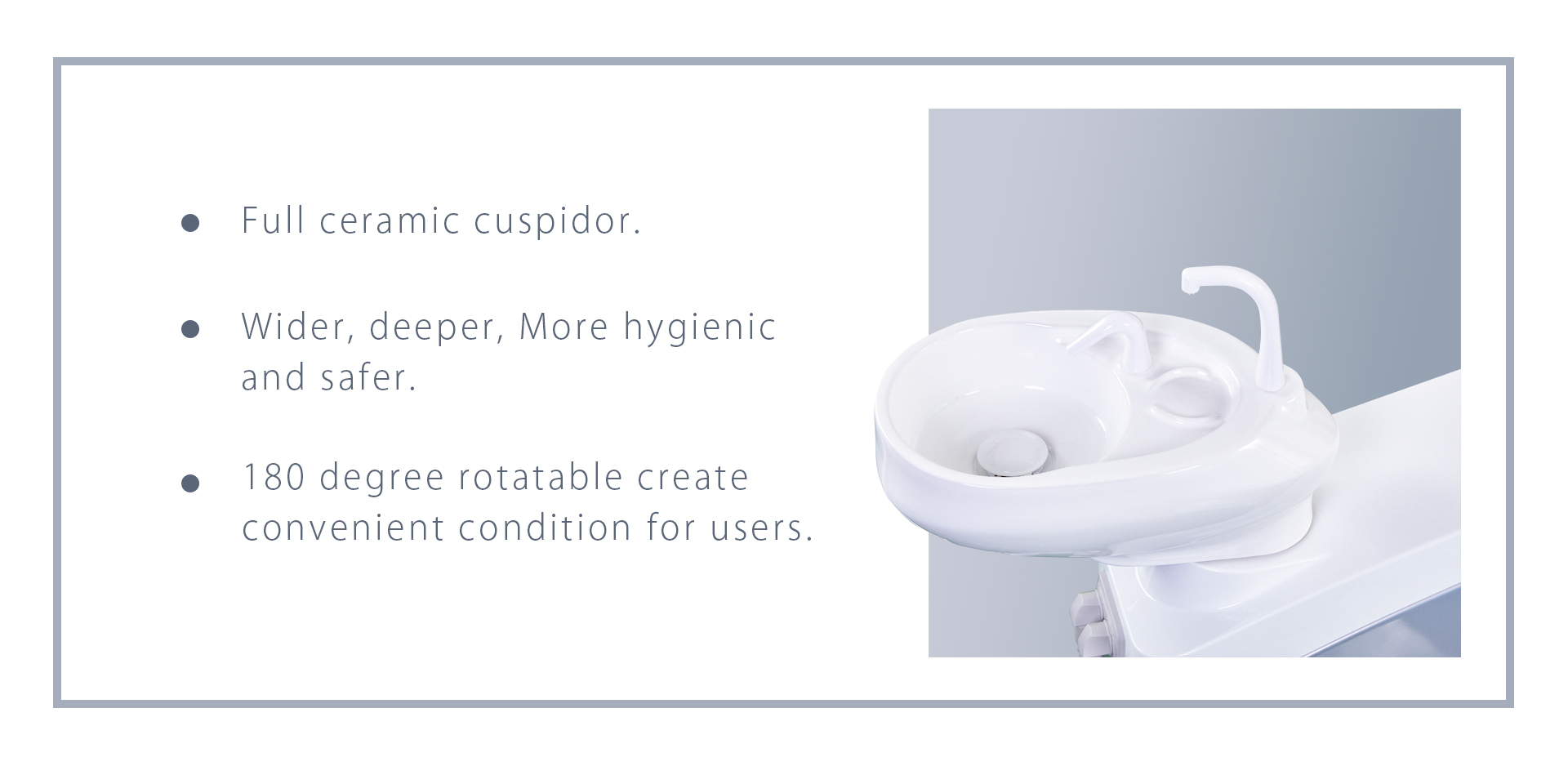

Cuspidor flush & Cup filler | 1 set |

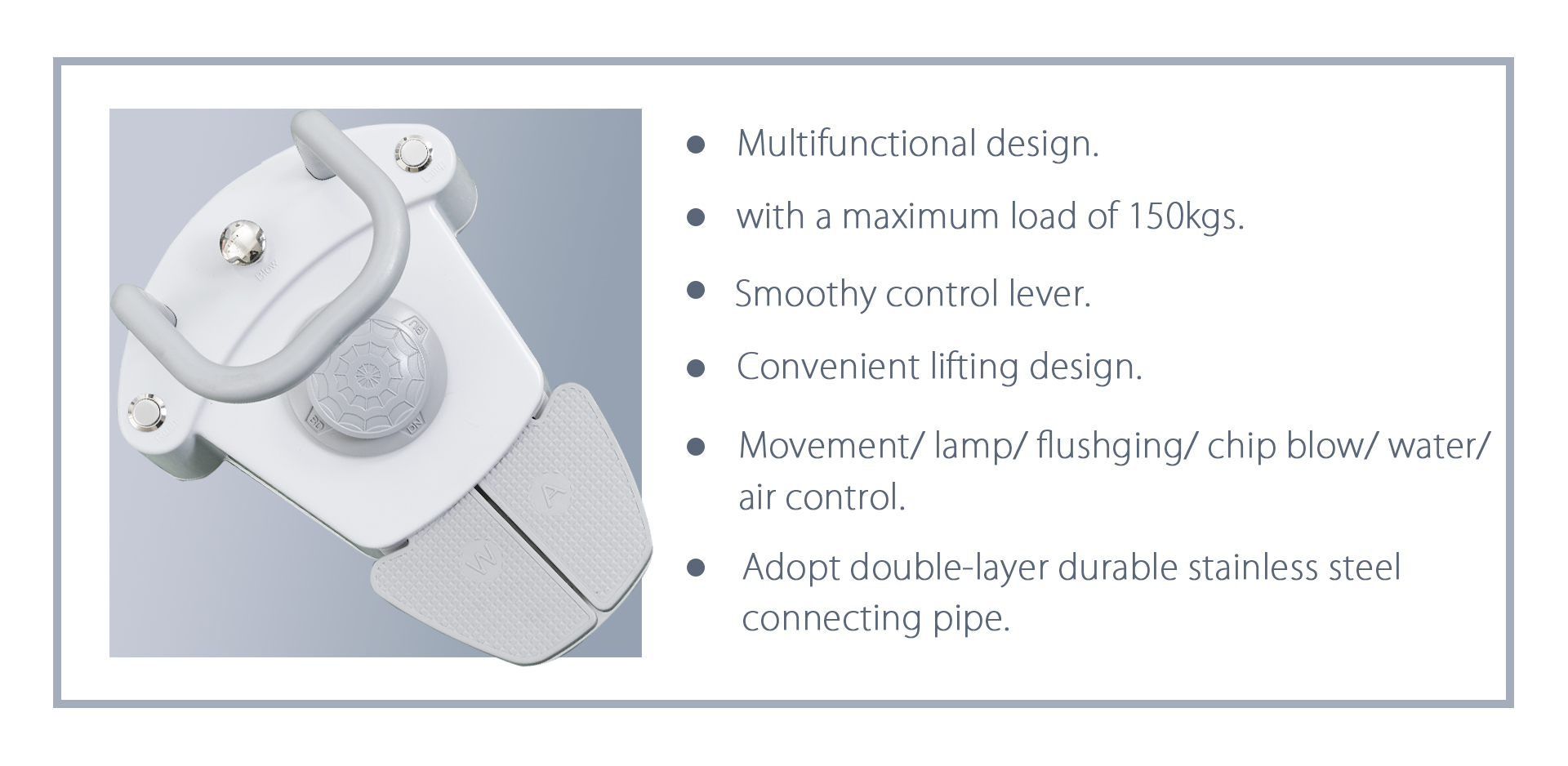

Multifunctional Pedal | 1 pc |
Built in Film viewer 24V | 1 pc |
Dentist stool | 1 pc |
Spittoon | 1 pc |

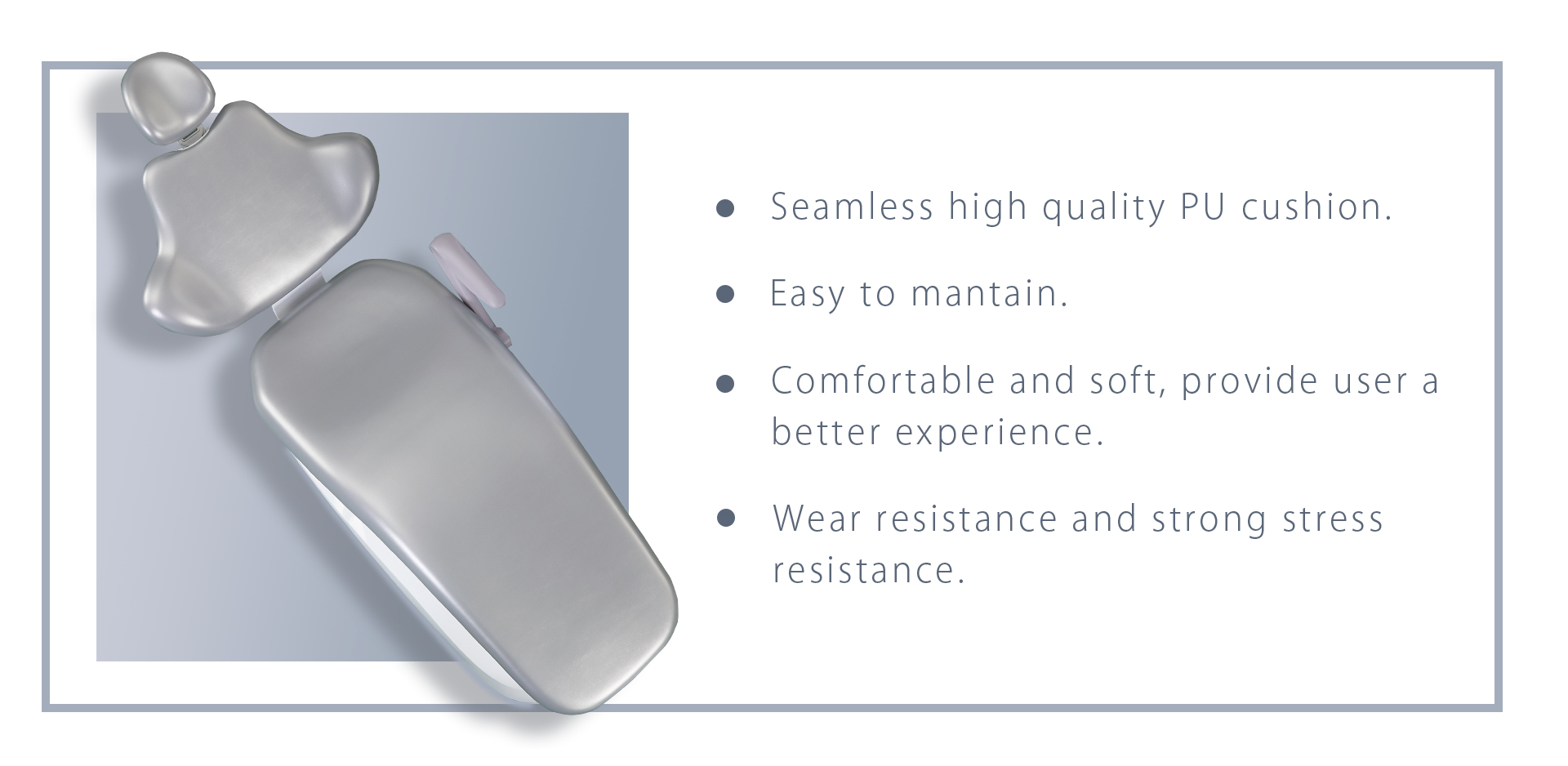

PU upholstery | 1 set |

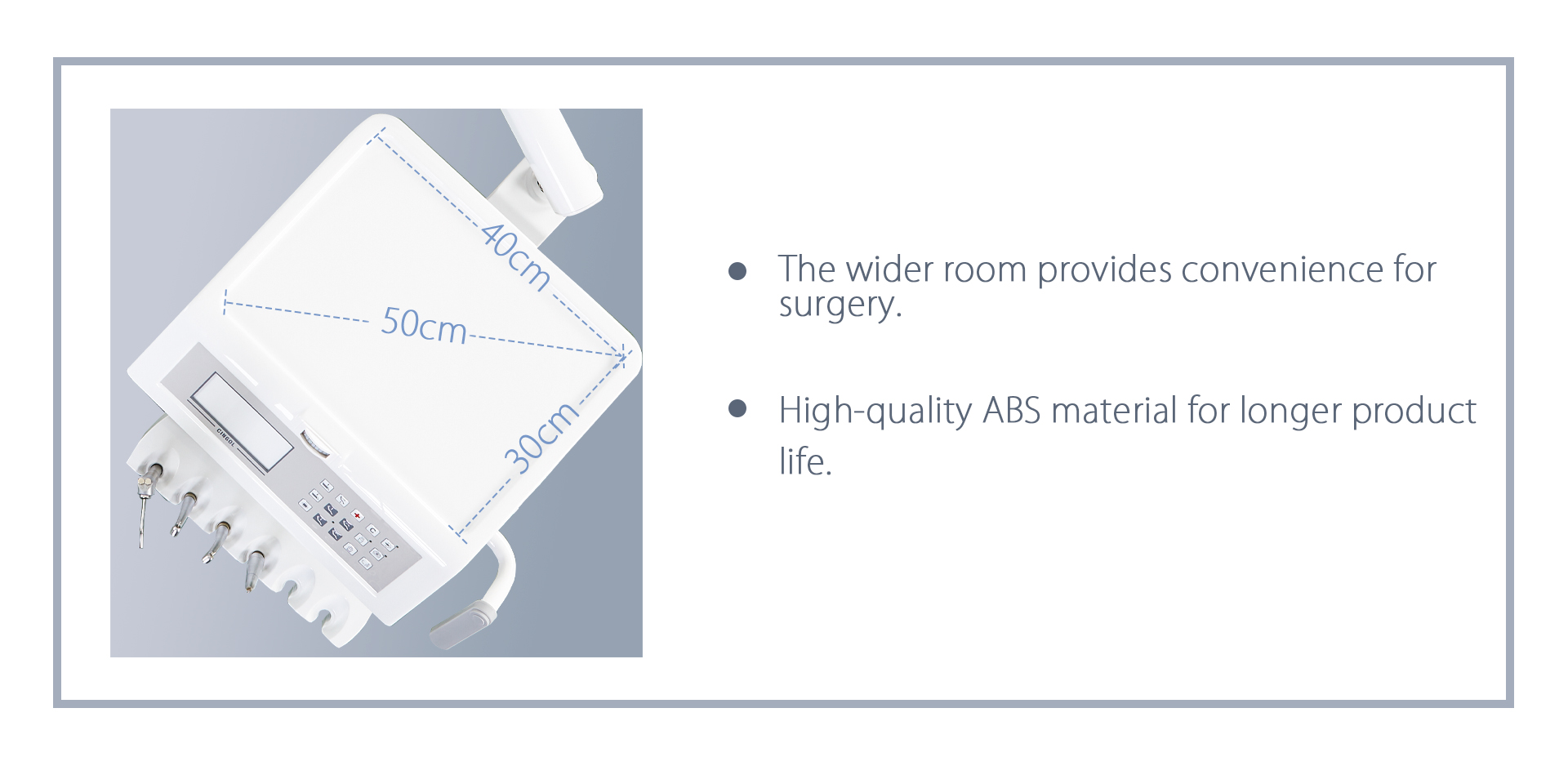

Main tray | 1 pc |
Assistant tray | 1 pc |

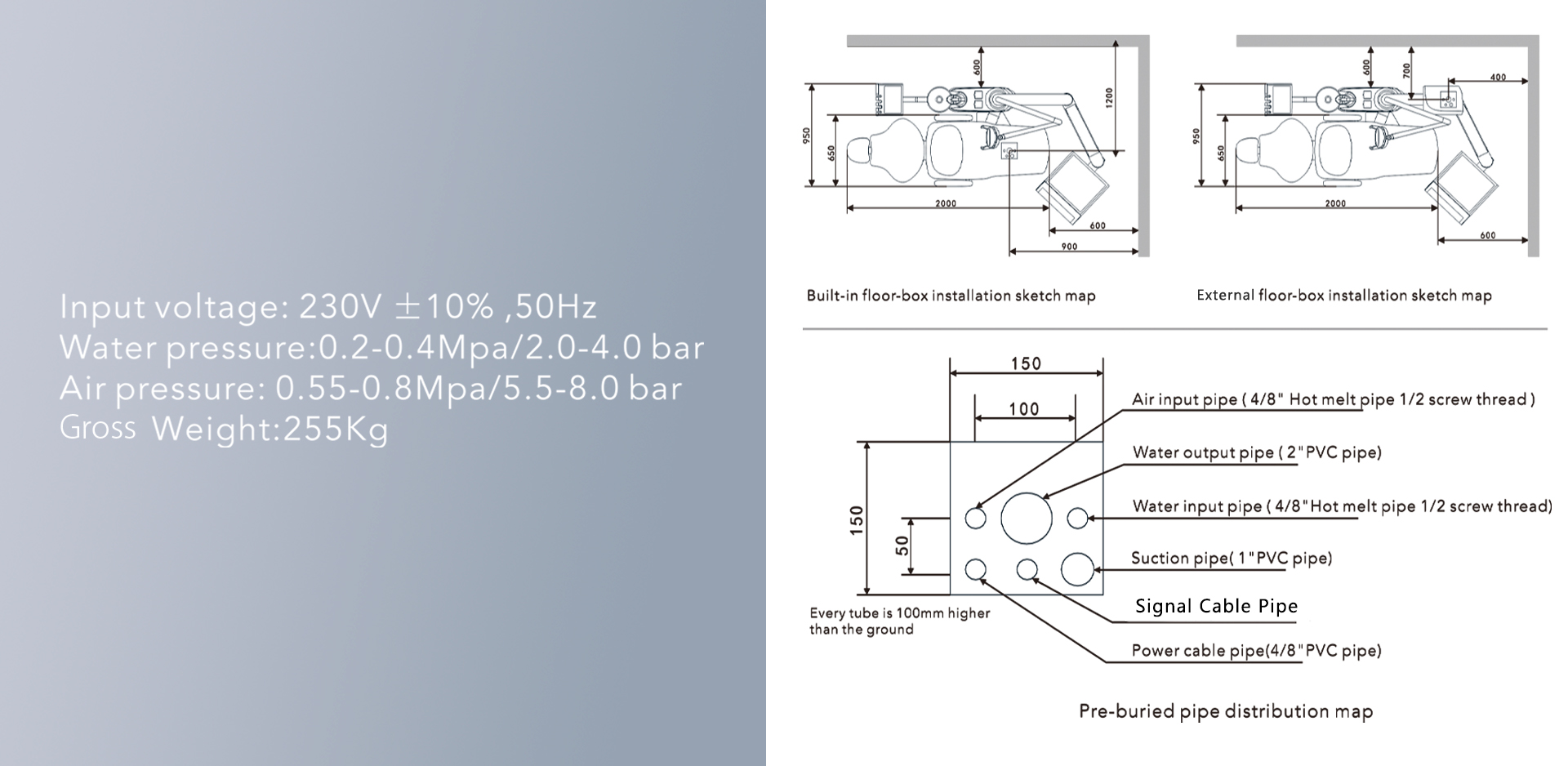

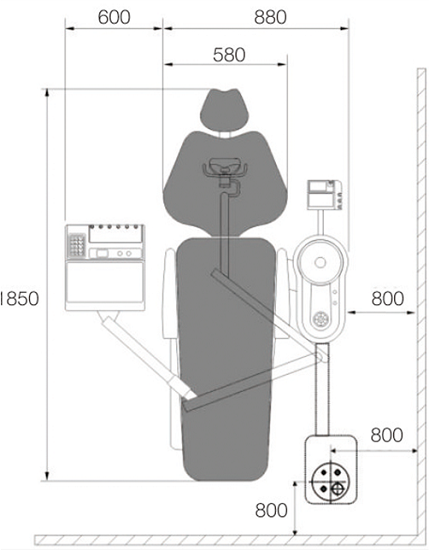

Installation diagram of external floor box
Outlet tubes sectional view

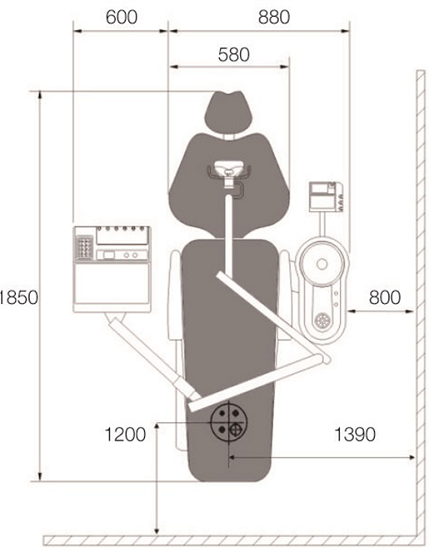

Installation diagram of built-in floor box
Outlet interface planar graph
The manufacture reserve the right to alter and improve the specification without notice.
